KN10
This product is a thin film-type FSR sensor designed for measuring pressure distribution in various industrial processes.
KN10_Characteristics
| Sensor Size (mm) | 17 x 17 | Sensing Area Size (mm) | 10 x 10 |
| Node Size (mm) | 10 x 10 | Thickness (μm) | ﹤ 270 |
| Technology | Piezoresistive | Matrix Type | Shunt |
| Minimum Pressure (kgf/cm²) | 0.5 | Maximum Pressure (kgf/cm²) | 40 |
| Temperature Range | Room Temperature | Compatible Electronics | Tinn |

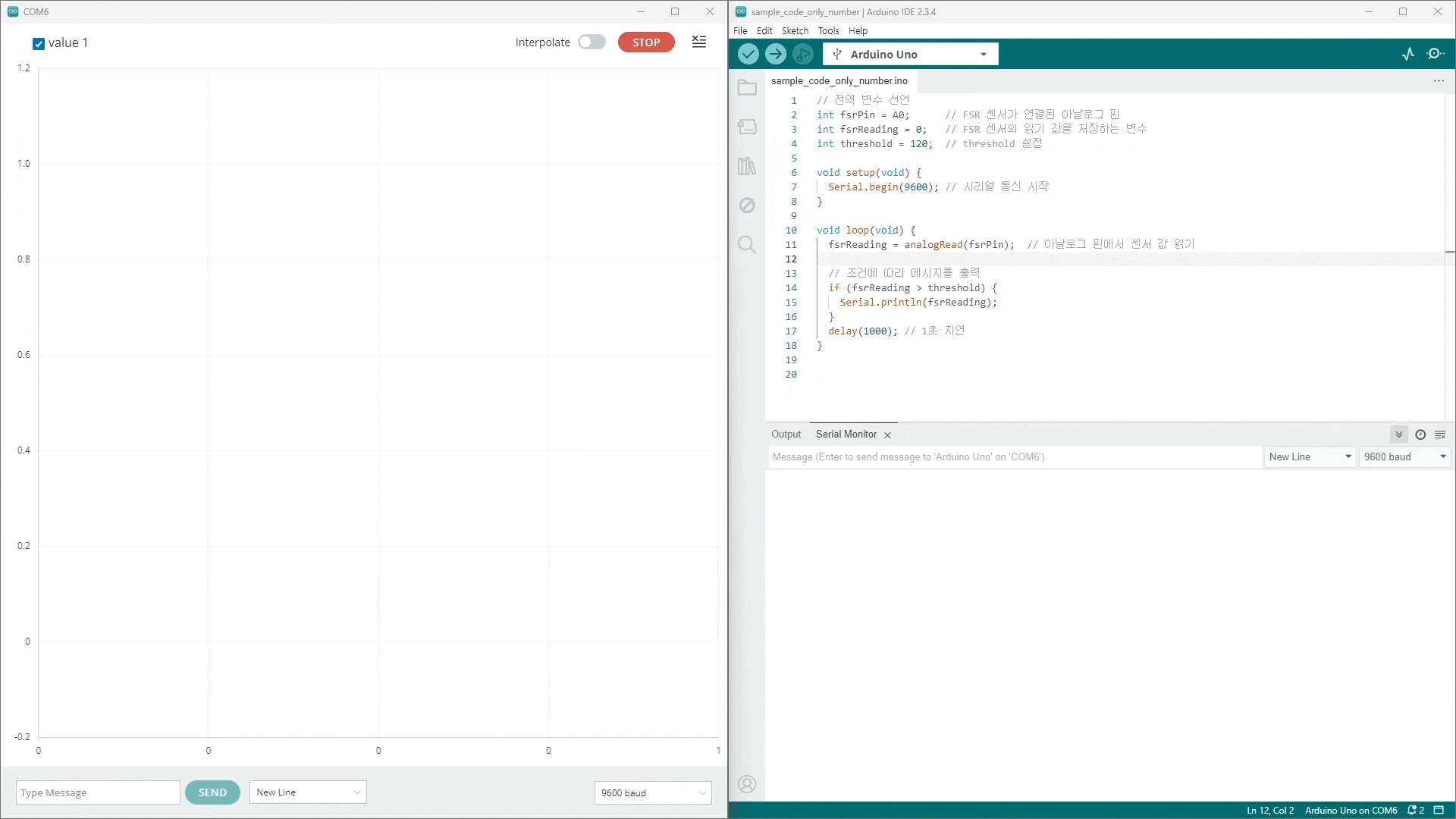

The KN10 sensor can be integrated with various development boards and embedded systems,
including Arduino, making it highly versatile beyond our solutions!
"For convenient and efficient monitoring, try using it with our solutions!"
- When connected to Tinn, real-time analysis and visualization of up to 10 sensors are possible.
- Simplified connection for real-time data monitoring.
- Optimized software support for data collection and analysis.
"Looking for an FSR sensor that integrates with existing systems and development environments?"

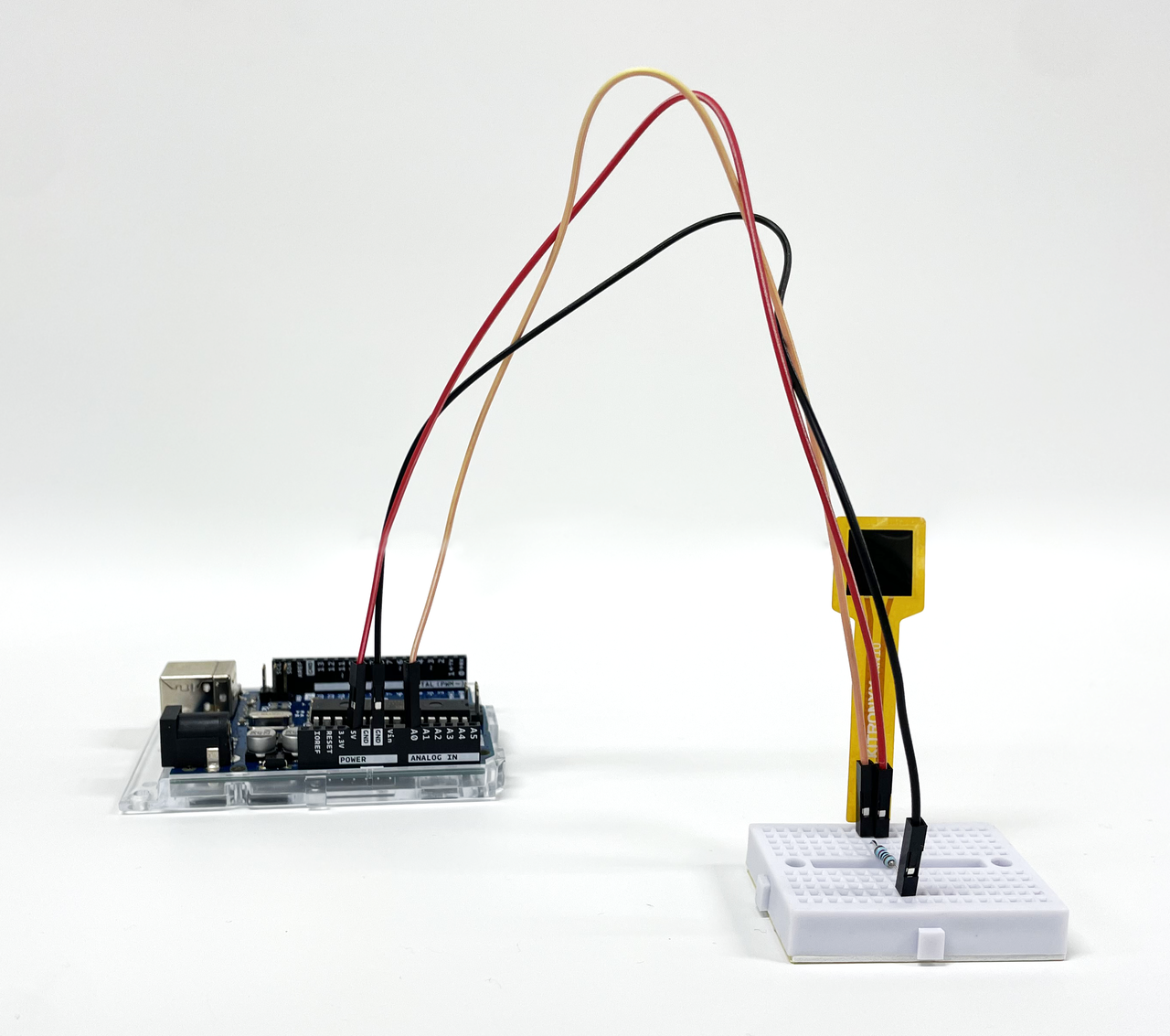

- The KN10 sensor, with its pin-type connection, can be applied to various projects and research settings.
- Compatible with Arduino and other development boards, as well as existing systems.
- Usable in environments with spatial constraints, thanks to its thin film design.
