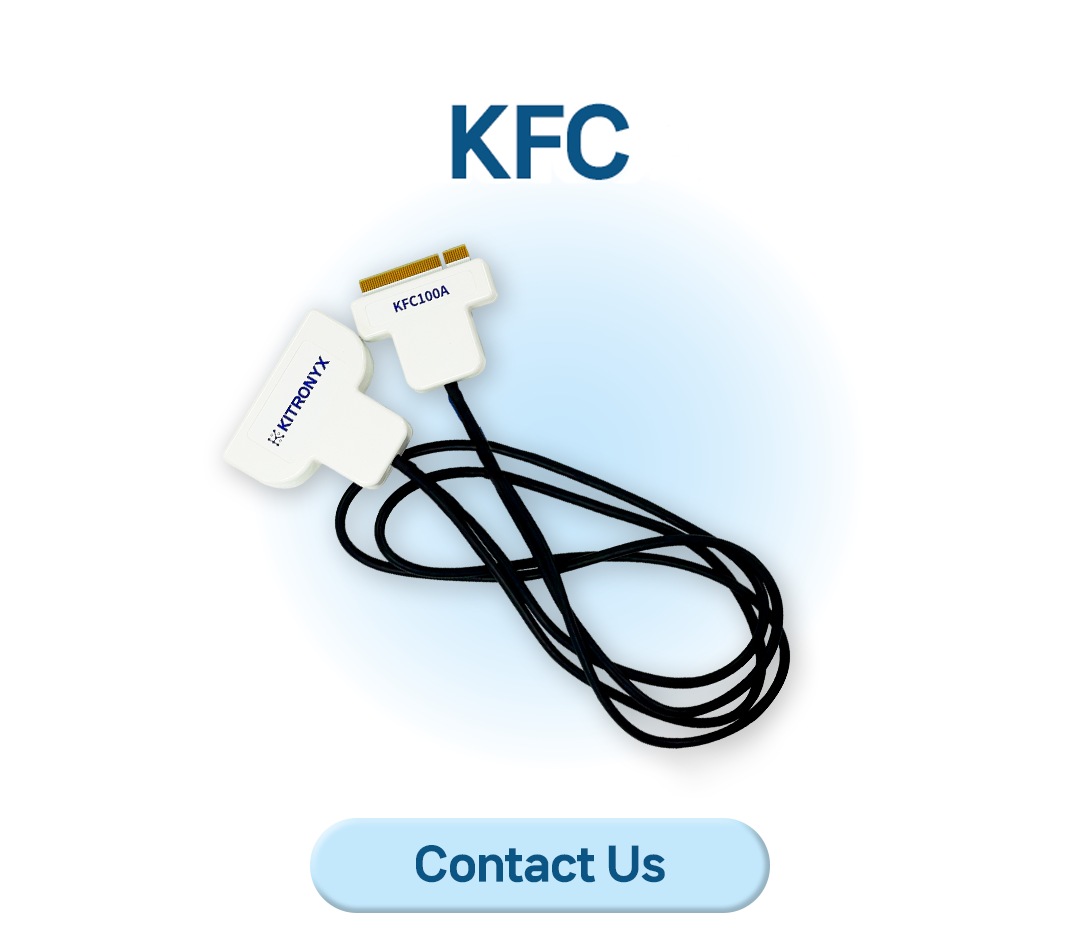

KFC
KFC is an extension cable that can extend the distance between the sensor and the controller.
It is more durable than standard FFC cables and is recommended for those concerned about cable damage,
except in environments that require very narrow spacing.
KFC Product Specification
| Product Type | Extension board |
| Cable Dimensions | Outer Diameter Φ 4.6 mm |
| Length (m) | 1, 2 |
| Case Dimensions (mm) | Controller Mounting Section 57.5 x 64.4 x 15.6 Interface Board Mounting Section 67 x 79.4 x 19.5 |
KFC List of Compatible Products
| Controller | Baikal II, Baikal II WIFI |
| Interface board | MA2032, MA1032, MA2402, MA2406AA |

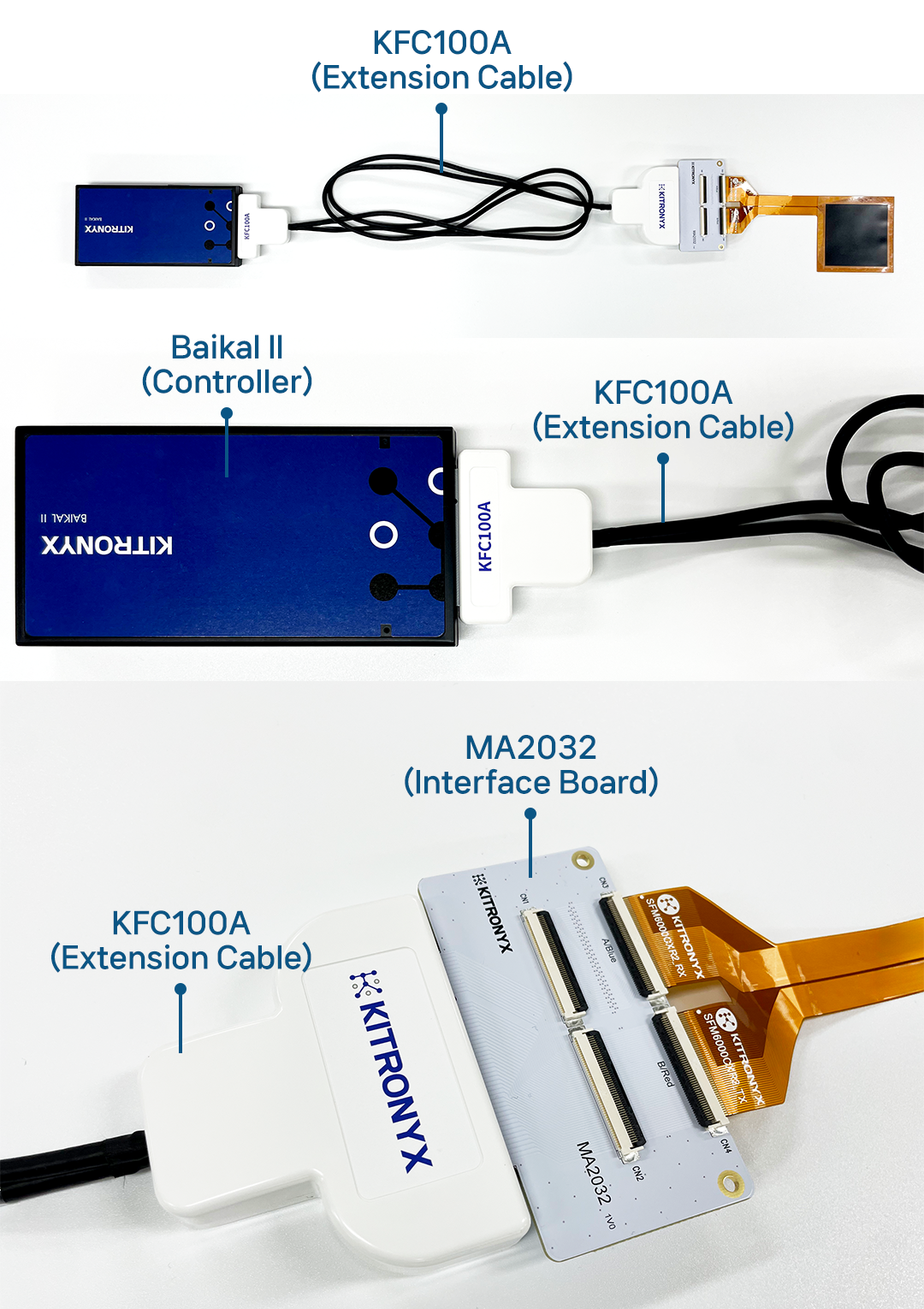

KFC Connection Example Image
