MA1248AA
MA1248AA is an interface board that connects pressure sensors to the controller.
It captures resistance changes from the sensors and transmits them to the controller,
enabling real-time pressure distribution visualization through software.
Equipped with four 50-pin connectors, the MA1248AA allows up to two SFC4310 sensors to be
connected to a single controller.
MA1248AA Product Specification
| Product Type | Interface board |
| Dimensions (L x W x H) (mm) | 43.6 x 140 x3.7 |
MA1248AA List of Compatible Products
| Sensor | SFC4310 |
| Controller | Baikal II, Baikal II WIFI |
| Extension Cable | FC50, FP100, KFC |

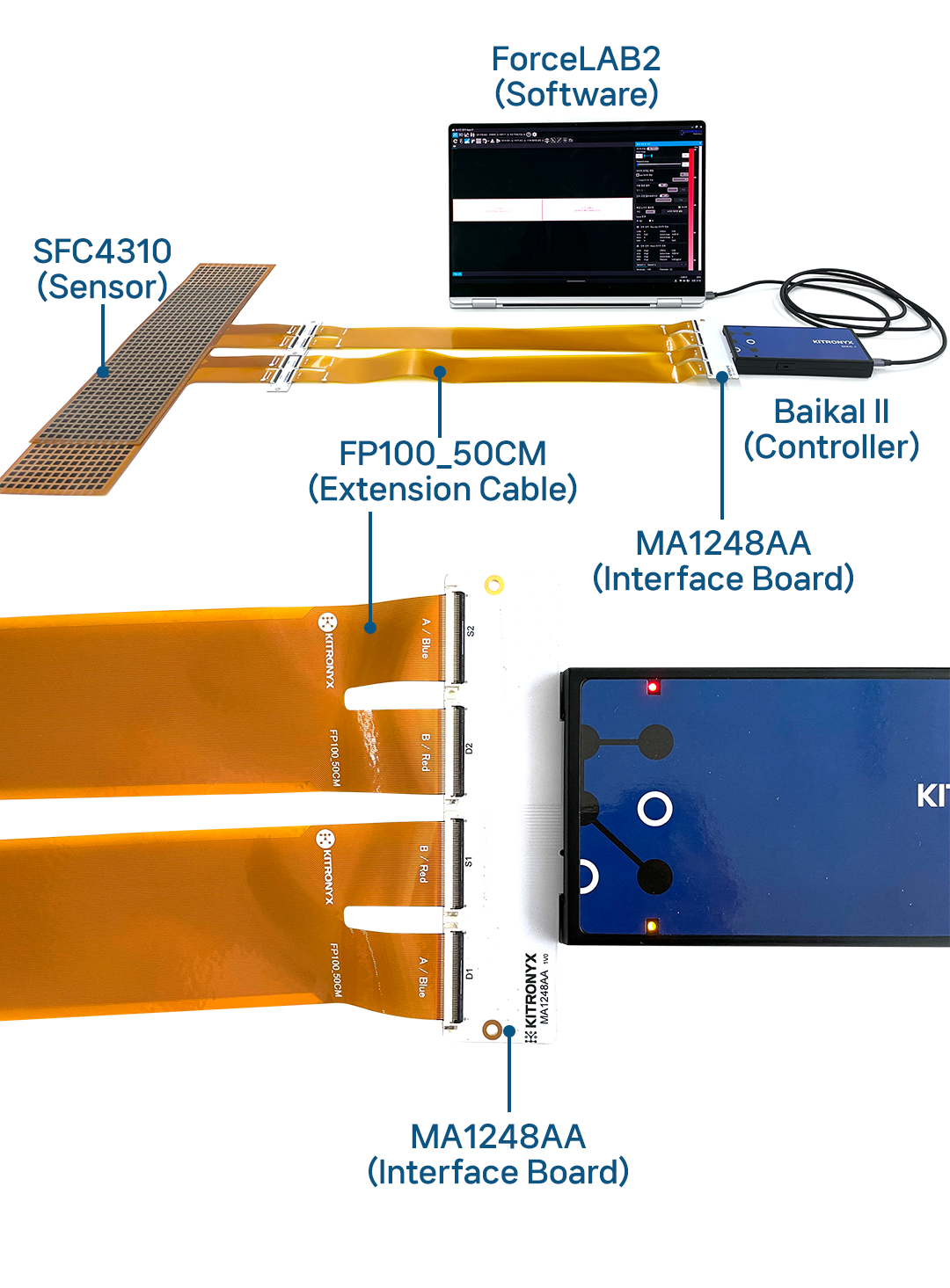

MA1248AA Connection Example Image
