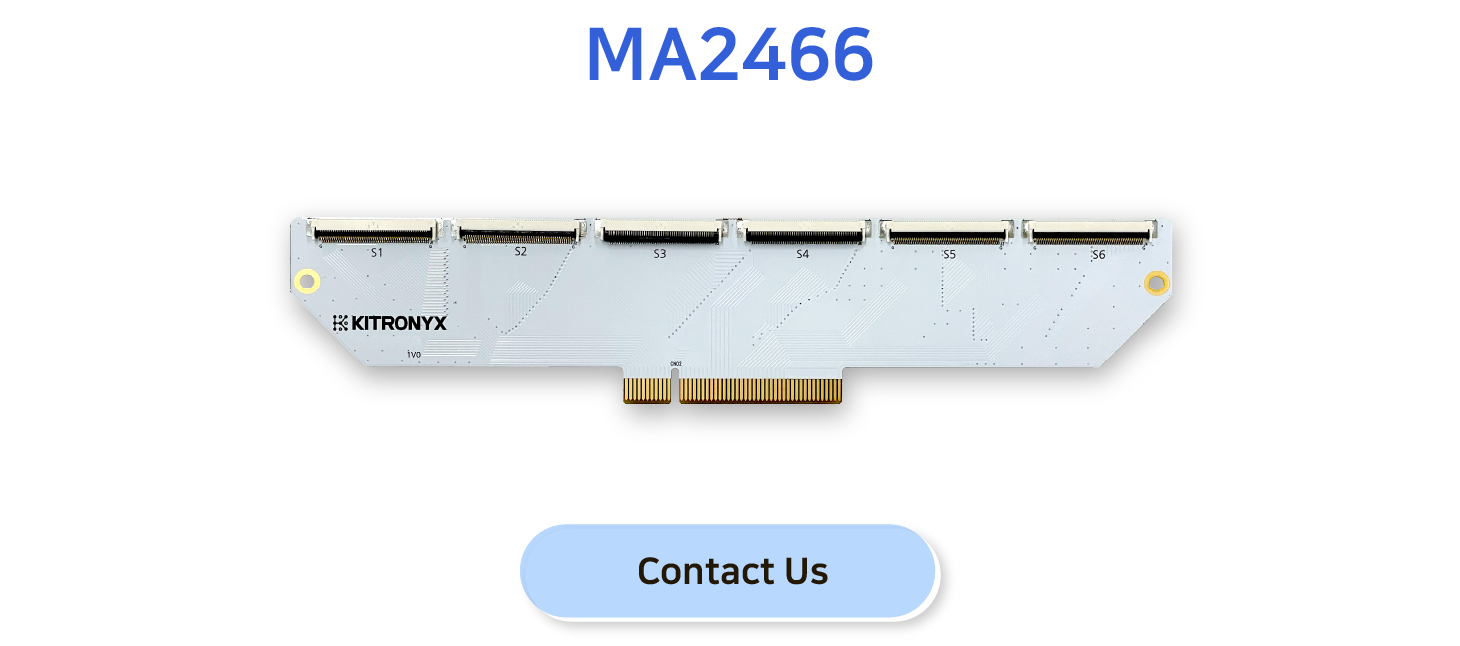

MA2466
MA2406 is an interface board that enables communication between sensors and controllers.
It has a structure with six 50 pin connectors, allowing six sensors, such as the SFC5512, SFC5210M2, and SFC3110, to be connected to a single interface board.
MA2466 Product Specification
| Product Type | Interface board |
| Dimensions (L x W x H) (mm) | 35 x 207 x3.7 |
MA2466 List of Compatible Products
| Sensor | SFC5512, SFC5210M2, SFC3110 |
| Controller | Baikal II, Baikal II WIFI * Baikal II is available for use on version 1.03r and above. Baikal II WIFI is available for use on version R2 and above. |
| Extension Cable | FC50, KFC |

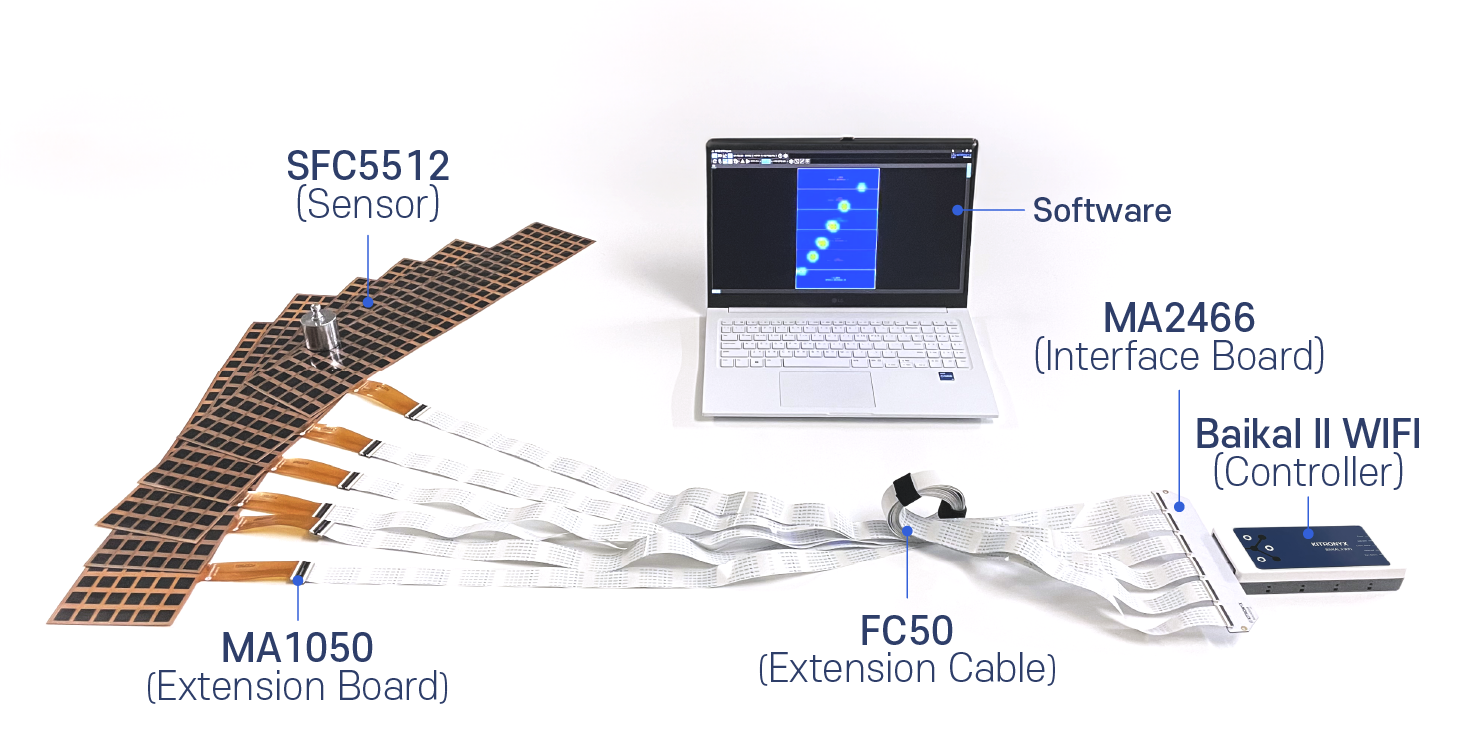

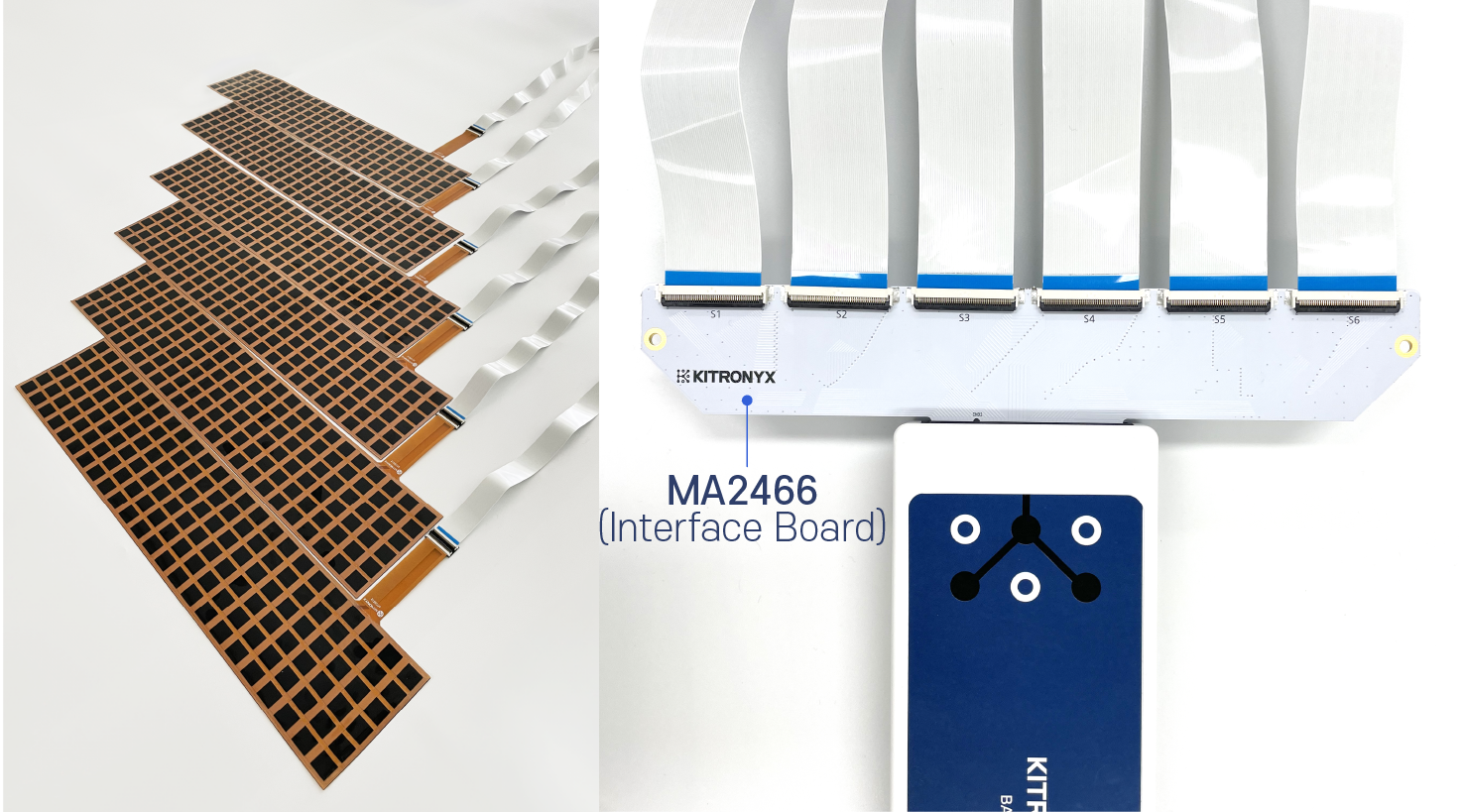

MA2466 Connection Example Image
