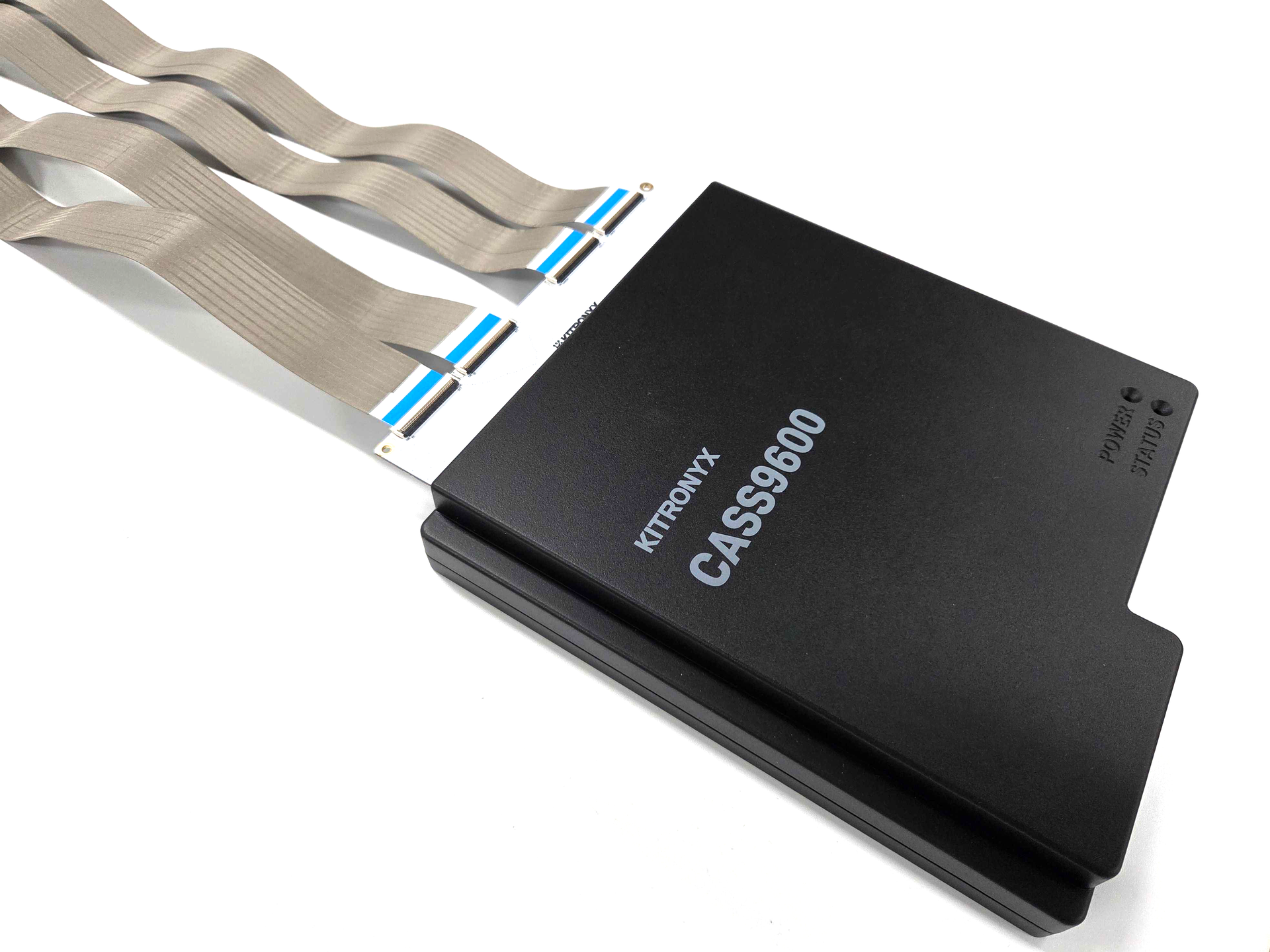

CASS9600
CASS9600 is a wired controller that converts analog signals measured by the sensor into digital signals and transmits them to the software.

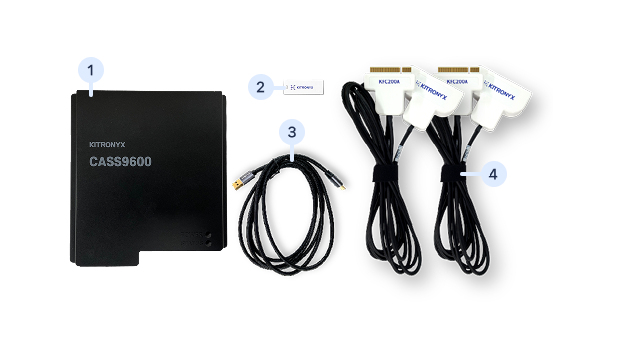

CASS9600 _ Components
1. CASS9600 1EA |
2. USB 1EA |
3. C-Type USB Cable 1EA |
4. KFC Cable(Multi-Conductor Cable) 2EA |

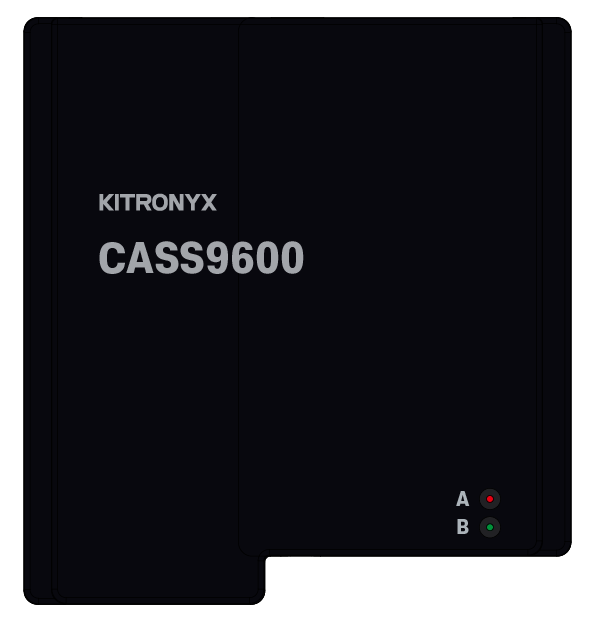

CASS9600 _ LED Status
A: Power ON/OFF |
B: Data Communication Status / Battery Status |
CASS9600 _ LED Status
LED | OFF | ON |
A: Power | Power OFF | Power ON |
B: Status | Data Comm.X | Data Comm. |
CASS9600 _ Physical Characteristics
Housing Material | ABS |
Size(L x W x H) (mm) | 193 x 207 x 34.1 |
Weight (g) | 787 |
Power Source | USB Powered, +5V / 0.8Amax |
CASS9600 _ Operating Characteristics
Maximum Scanning Speed | 16Hz |
Digital Pressure Resolution | 8 bit |
Communication to PC | USB |
Temperature | 0 ~ 70℃ |

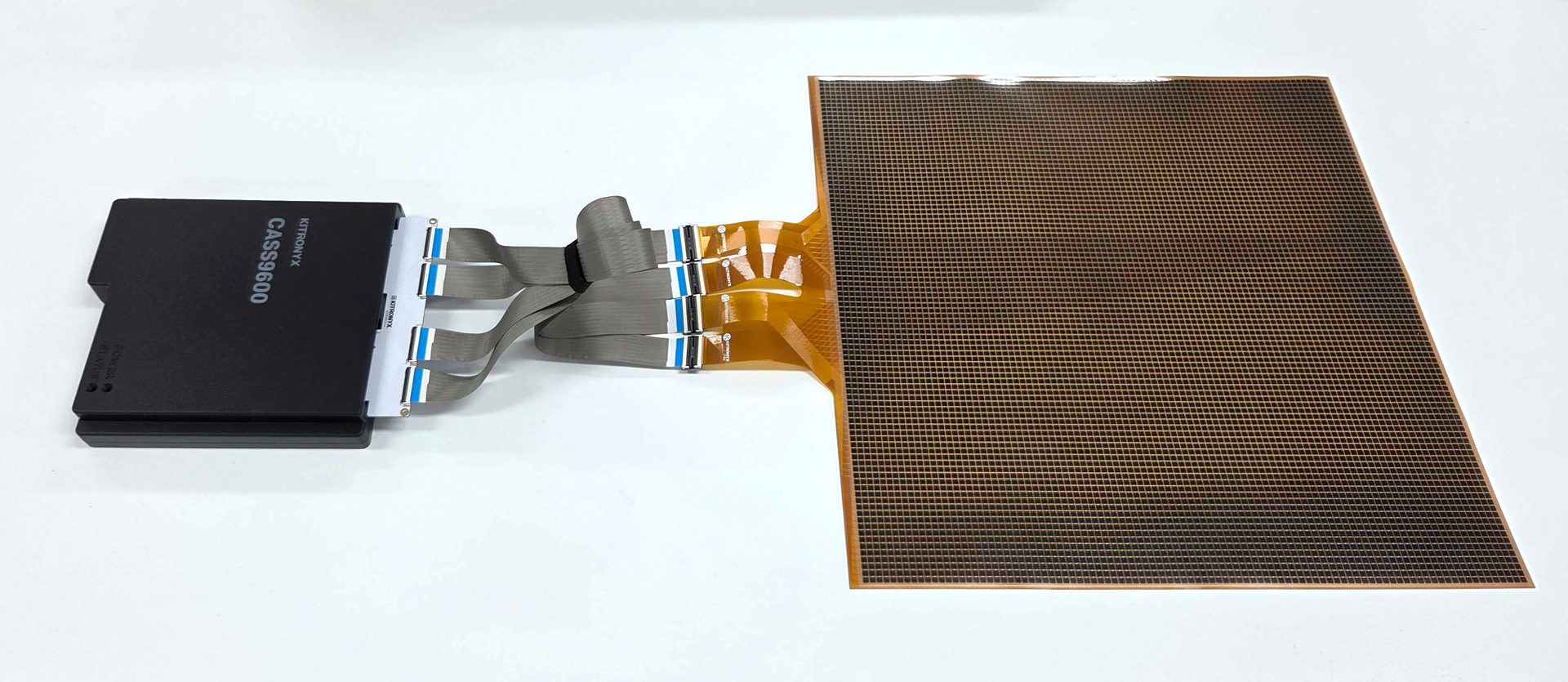

CASS9600 _ Connection Example Image
