Kitronyx Customized Sensor Portfolio


Customizable Sensors for Flexible Layouts and Complex Geometries

Sensors can be customized to match specific equipment dimensions.

  • Node layout and sensor shape can be tailored to fit the structure of the product or machinery—such as incorporating a central hole or adapting to non-standard geometries—enabling accurate pressure distribution measurement across a wide range of industrial processes.

No.
Sensor Image
Sensor Model
Sensor Size [W x L] (mm)
Sensing Area (mm)
Use Case
Description

1

SFC0715CM

72 x 149

66.5 x 140

Display

#Smartphone

2

SFC2000CX

223.75 x 223.75

199.75 x 199.75

-

#Cuttable sensor

3

SFC2700CX_IP

284 x 284

270 x 270

Automotive

#Shark-fin antenna mounting

#center hole

4

SFC3018

320 x 200

298 x 178

Display

#TFT lamination process

5

SFC4321

442.55 x 224

428 x 212

Semiconductor

#FC-BGA packaging process

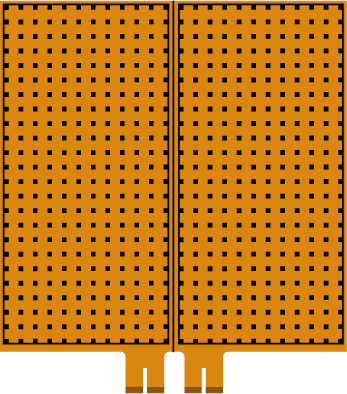

#Left-right split-type sensor

6

SFC4602

460.38 x 45.785

455.1 x 20.5

Advanced Materials

#Film manufacturing
#Nip pressure measurement
#Enhanced horizontal resolution

7

SFC5000

514.683 x 519.483

499.983 x 499.983

Semiconductor

#Glass Core Substrate lamination

8

SFC6002

608 x 38

598 x 19

Secondary Battery

#Enhanced horizontal resolution

9

SFM4628C

Φ 46

-

Secondary Battery

#Electrolyte filling process

#Donut-shaped sensor

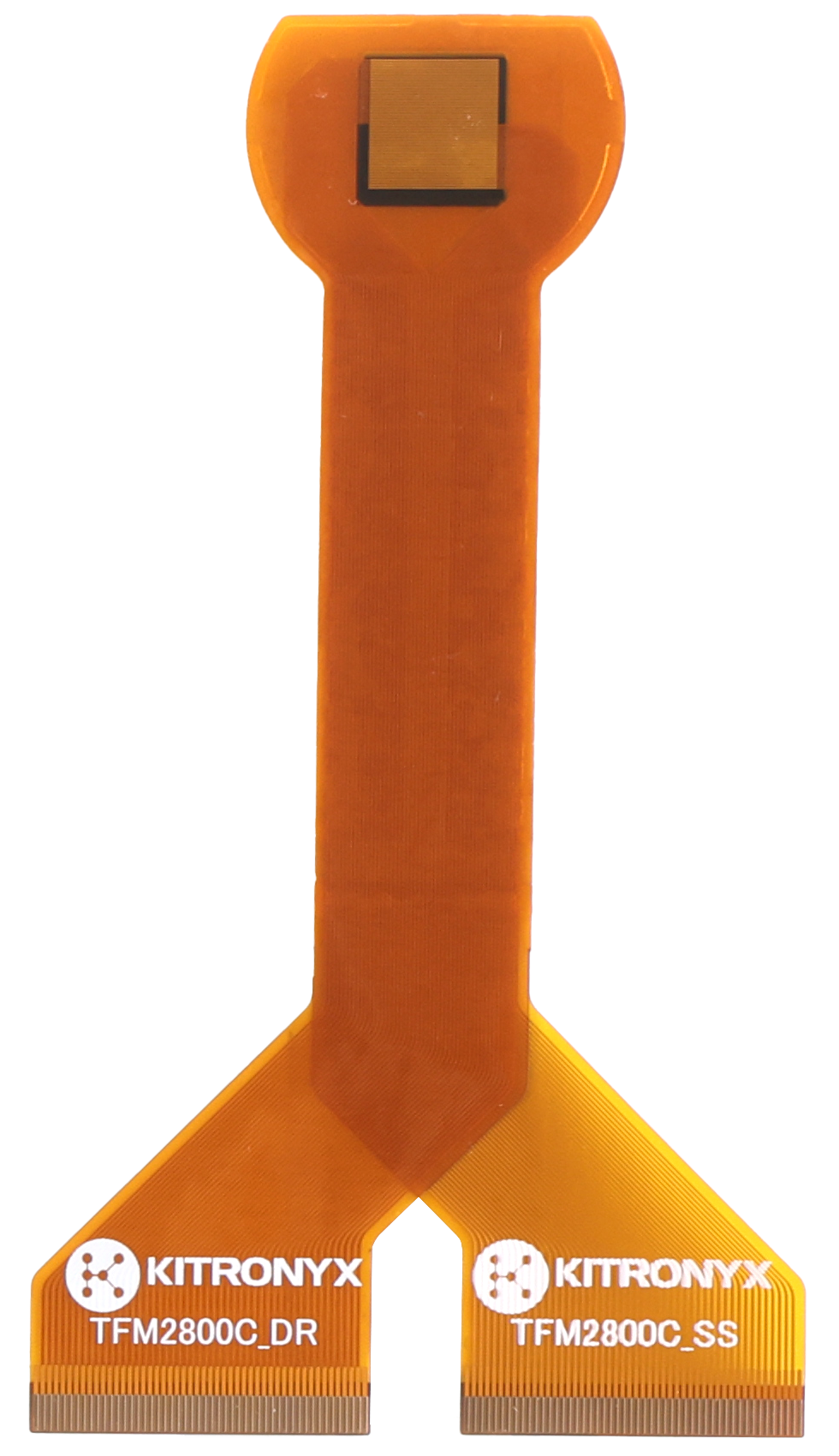

10

TFM2800C

28 x 20.4998

9.5 x 9.5

Secondary Battery

#Battery welding process
#Welding rod wear detection


Multi-Sensor Connectivity for Space-Efficient Pressure Mapping

Enables flexible and efficient pressure distribution measurement using a multi-sensor configuration.

  • By distributing a 48×48 channel matrix across multiple FSR sensors connected to a single controller, sensors can be placed freely at designated points.

  • This allows for real-time, high-precision pressure monitoring at multiple locations while maximizing space utilization within the system.


No.
Sensor Image
Sensor Model
Sensor Size [W x L] (mm)
Sensing Area (mm)
Use Case
Description
1

SFC4211

419.25 x 113.67

409.45 x 105.67

Secondary Battery

#Uniformity evaluation
#Optimized for battery cell dimensions

2

SFC4310

451.7 x 121.5

428 x 104

Consumer Electronics

#Pressure distribution check during display packaging
3
SFC4428

440 x 295

438 x 277

Secondary Battery

#Coating process evaluation in Secondary  battery manufacturing
4
SFC8045

45 x 80

37 x 70

Secondary Battery

-

Multi-Controller Integration for High-Resolution Pressure Mapping

Enables high-resolution pressure distribution analysis by connecting multiple controllers to a single FSR sensor.

  • When multiple controllers are integrated with one sensor, the total number of active channels increases, allowing for finer spatial resolution.

  • This configuration is ideal for applications requiring detailed, high-density pressure data across a broad sensing area.


No.
Sensor Image
Sensor Model
Sensor Size [W x L] (mm)
Sensing Area (mm)
Use Case
Description
1

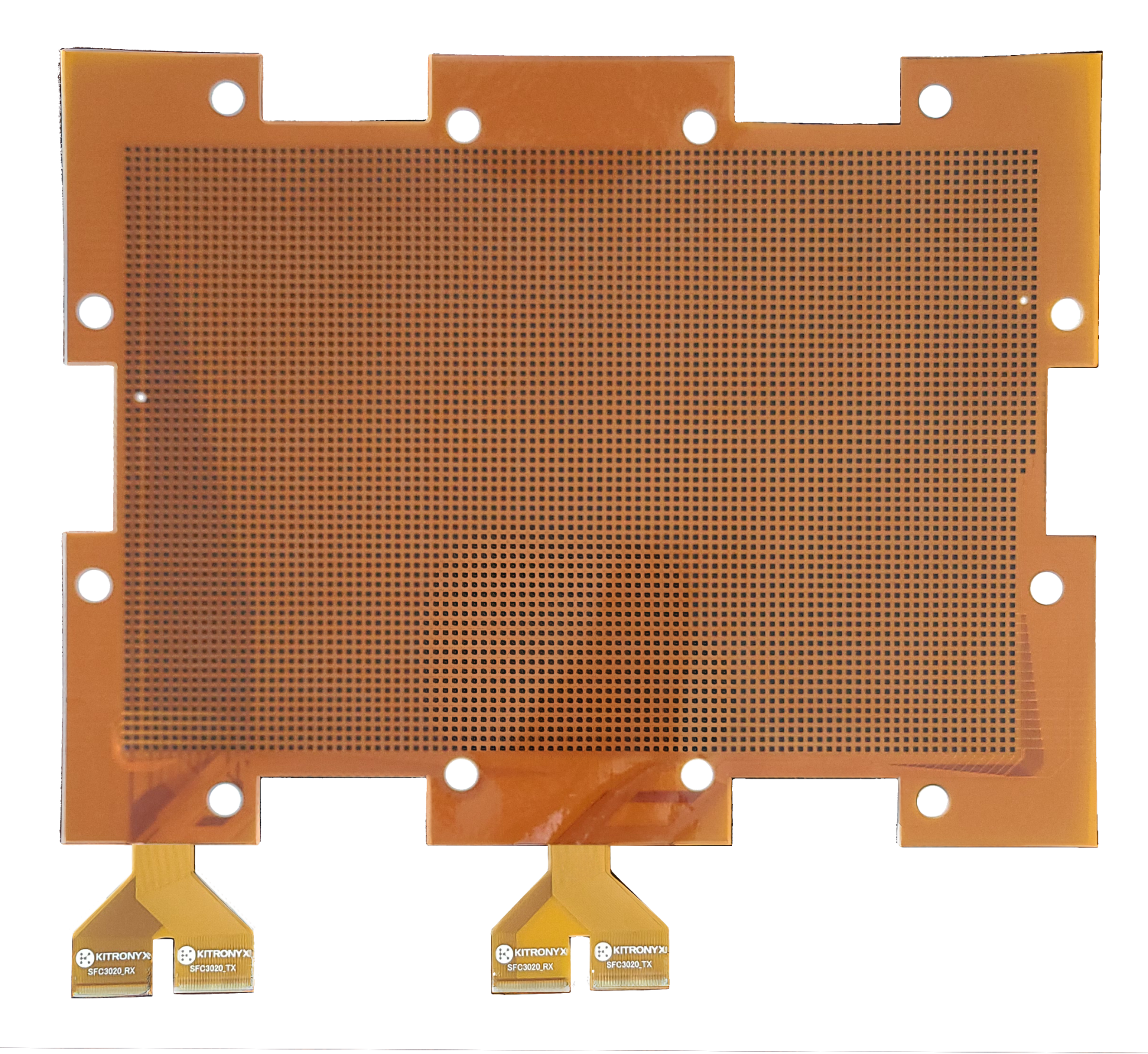

SFC3020

332 x 254

286.5 x 193.5

Automotive

#Hydrogen vehicle
#Gasket pressure uniformity evaluation

2

SFC3800CX96

406 x 406

386 x 386

-
#research applications
3
SFC4333
442 x357.45
430 x 332

Display

#Lamination process
4
SFC4513
458 x 179
448.5 x 118.8
Automotive
#Hydrogen vehicle
#Gasket pressure uniformity evaluation
5
TFC1005
134.2 x 77.18
100 x 50

Display

#CoP process
#Tooltip parallelism inspection

Sensors Optimized for Roll-to-Roll (R2R) Process

Specifically designed for R2R systems, these sensors are ideal for evaluating roller surface uniformity and wear across the width.

  • Sensors that can be wrapped around the roller surface enable real-time pressure distribution measurement during roller operation, allowing for dynamic monitoring of contact conditions and early detection of process anomalies.


No.
Sensor Image
Sensor Model
Sensor Size [W x L] (mm)
Sensing Area (mm)
Use Case
Description

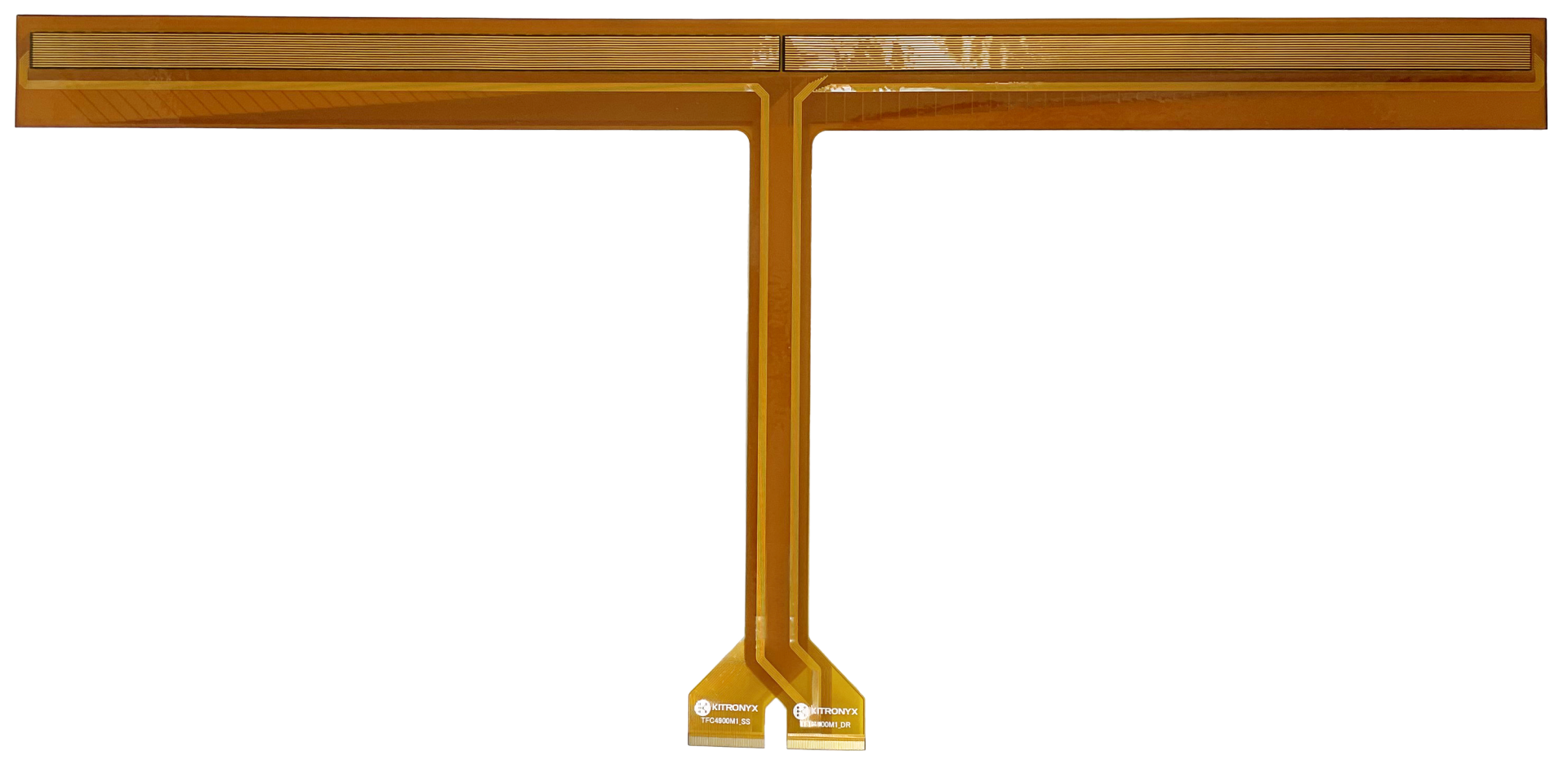

1

TFC4900M1

502 x 36.6

489  x 11.4

MLCC

#Roll-to-Roll process

2

TFC4900M2

458.87 x 503.5

450.31 x 503.5

MLCC

#Roll-to-Roll process
#Wrapping-type sensor

Low-Pressure Application Sensors

  • Equipped with high-sensitivity sensing elements, these sensors can accurately digitize and visualize pressure distribution even in low-pressure environments.


NO.

Sensor Image
Sensor Model

Sensor Size [W x L] (mm)

Sensing Area (mm)
Use Case
Description

1

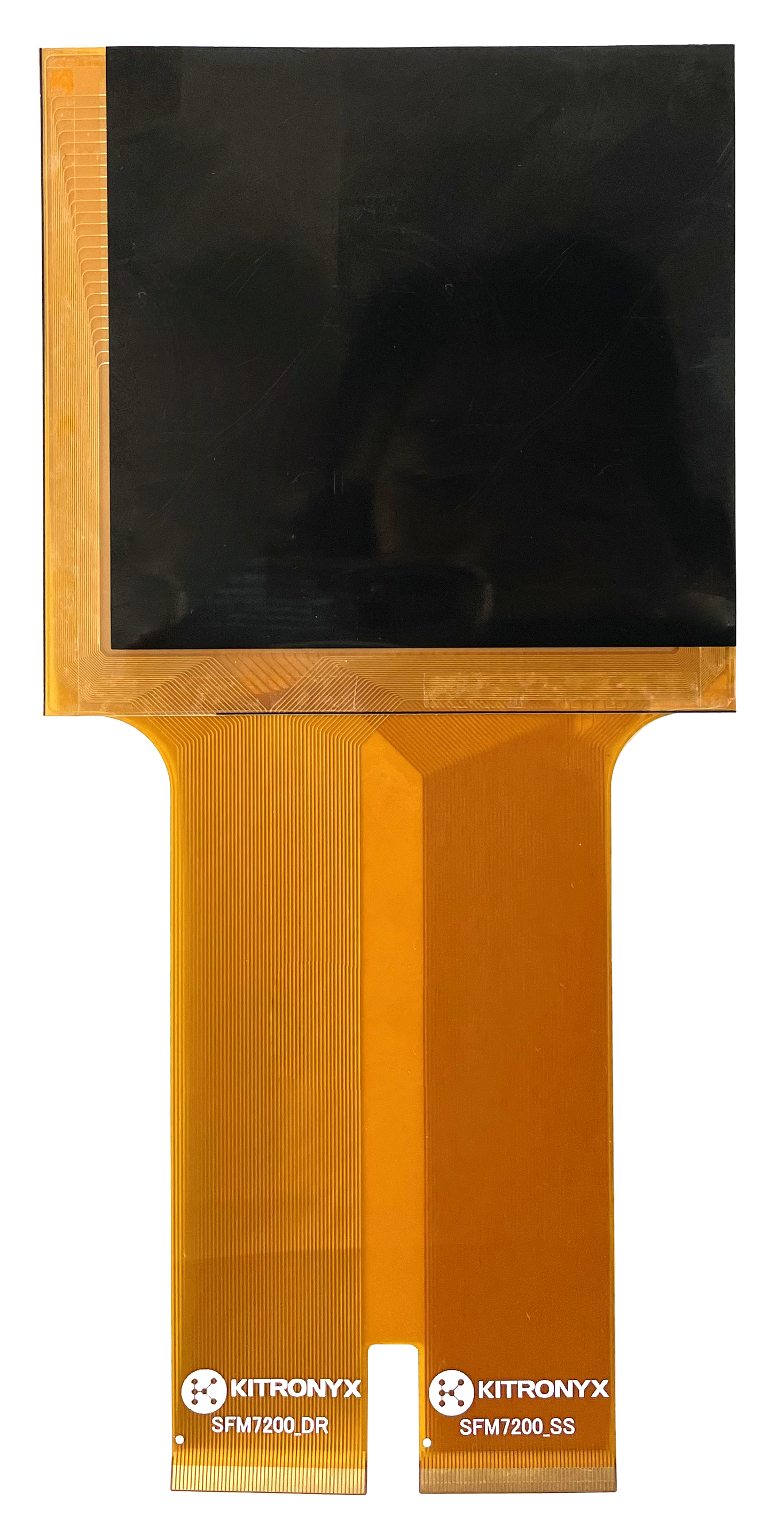

SFM7200

89.5 x 86

71.5 x 71.5

Semiconductor

#semiconductor packaging processes

Large-Area Sensors


NO.

Sensor Image
Sensor Model

Sensor Size [W x L] (mm)

Sensing Area (mm)
Use Case
Description

1

SFC10050

515 x 1043

446.5 x 949.5

Healthcare

#body pressure distribution mapping
#measurement in various postures

2

SPC6525

200 x 650

150 x 596.42

Healthcare

#body pressure distribution mapping on beds
