Product | Model (Model links to details) | Detail | Download |

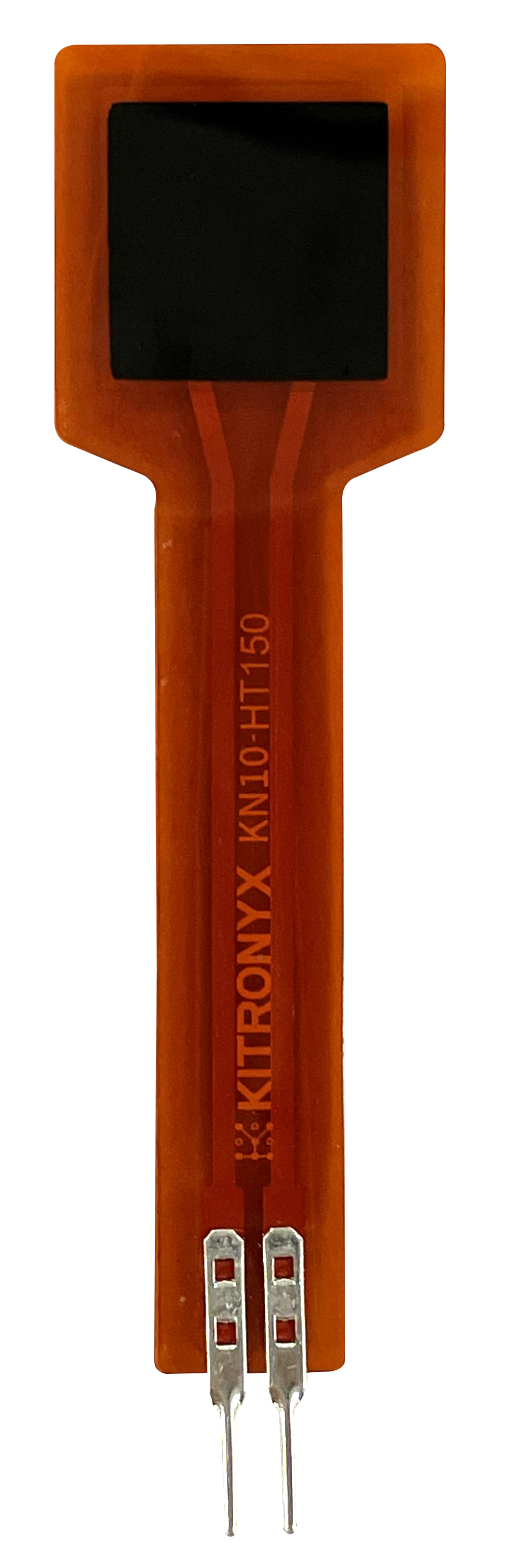

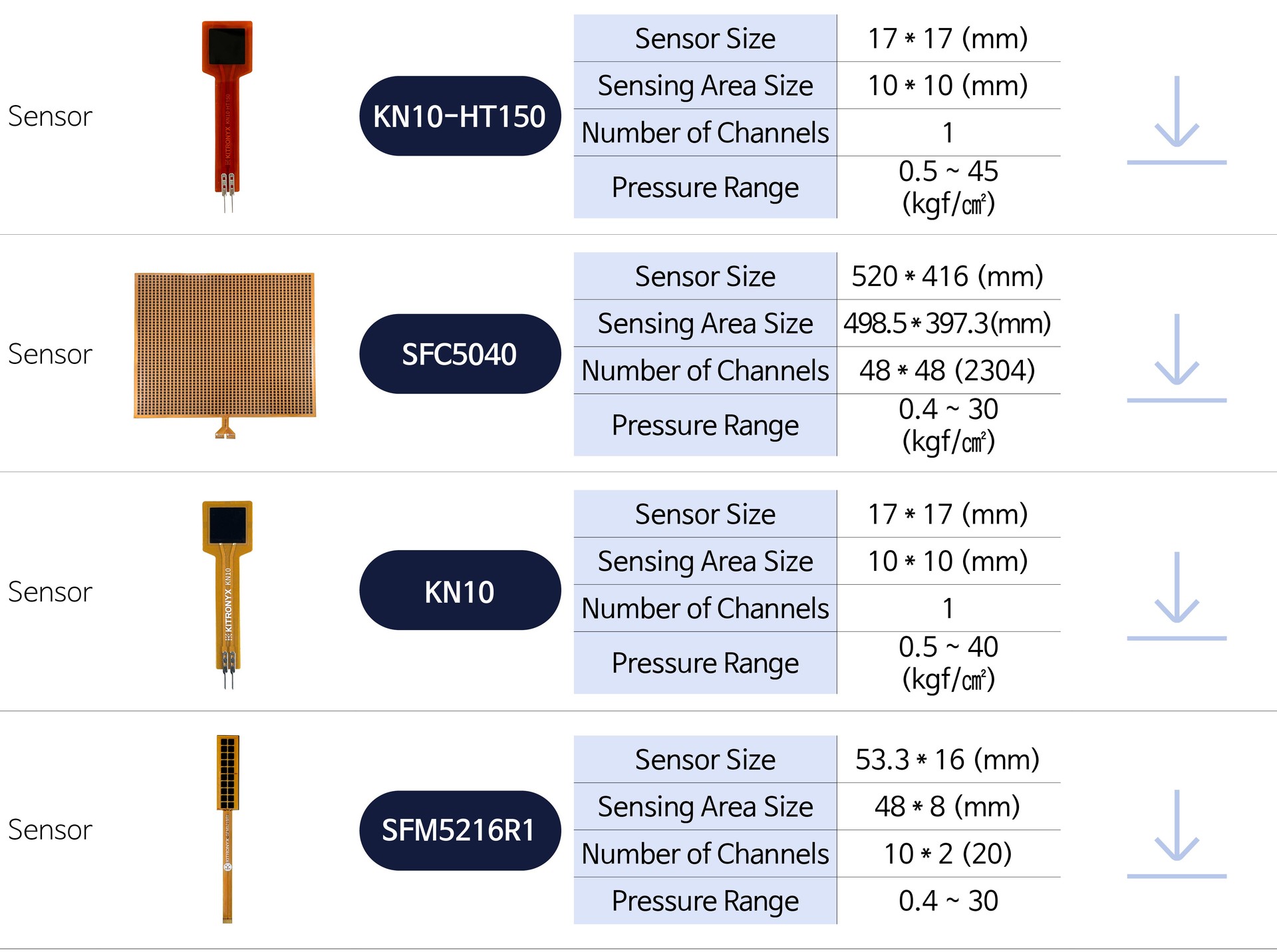

Sensor |  | KN10-HT150 | Sensor Size(mm) | 17 * 17 | Sensing Area Size(mm) | 10 * 10 | Number of Channels(Nodes) | 1 | Pressure Range(kgf/cm²) | 0.5 ~ 45 |
|  |

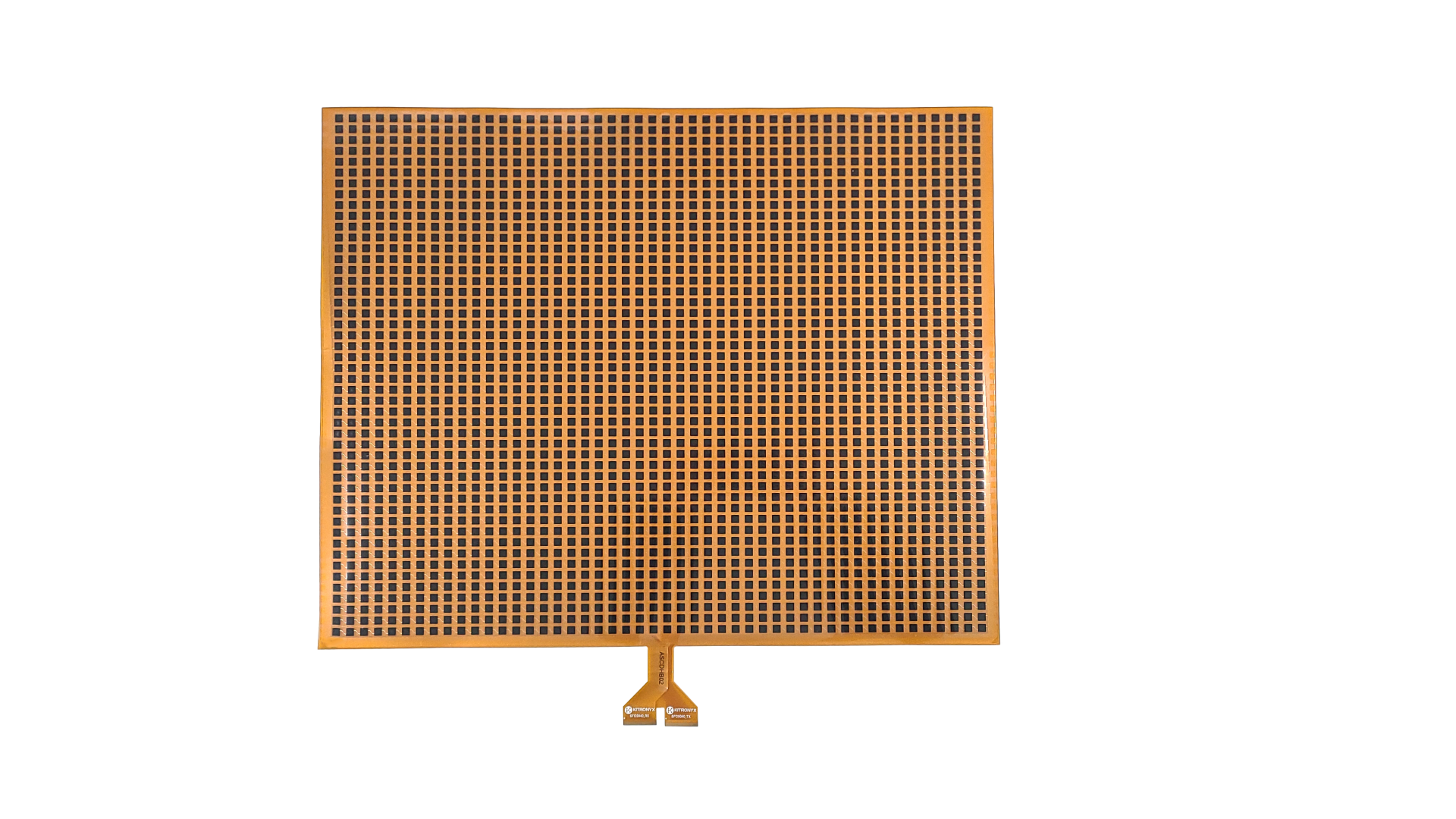

Sensor |  | SFC5040 | Sensor Size(mm) | 520 * 416 | Sensing Area Size(mm) | 498.5 * 397.3 | Number of Channels(Nodes) | 2,304 | Pressure Range(kgf/cm²) | 0.4 ~ 30 |
| |

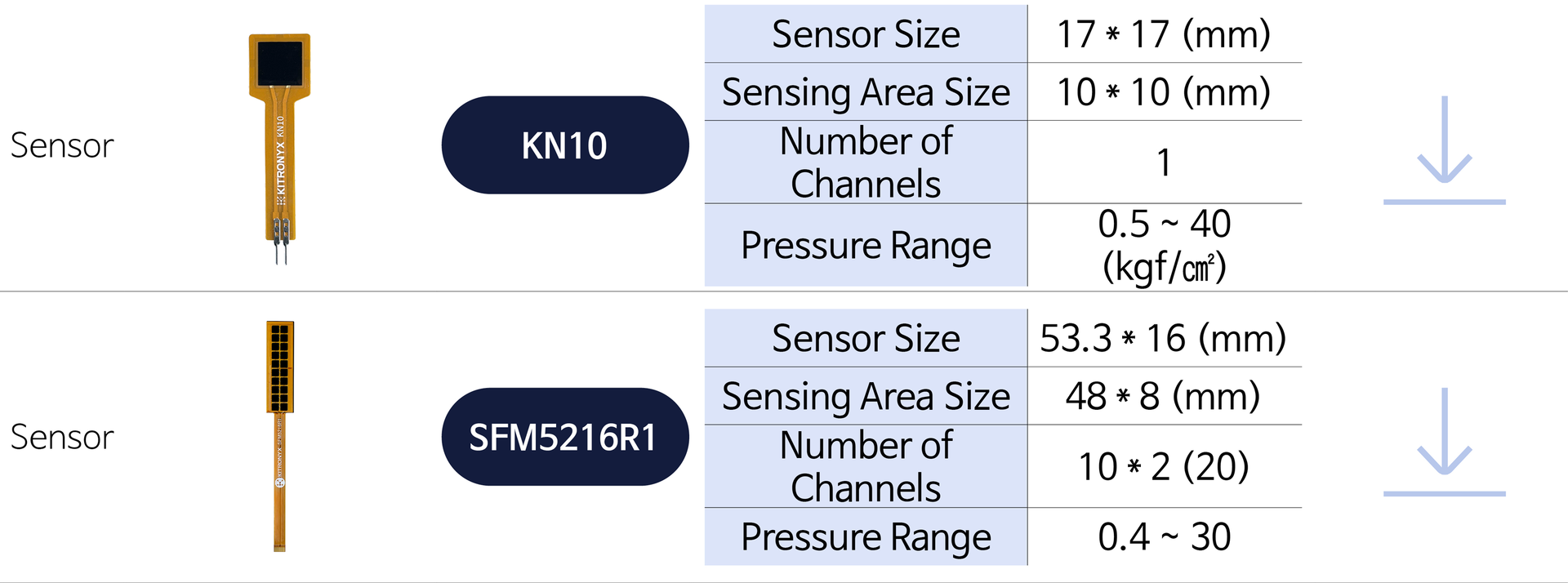

Sensor |  | KN10 | Sensor Size(mm) | 17 * 17 | Sensing Area Size(mm) | 10 * 10 | Number of Channels(Nodes) | 1 | Pressure Range(kgf/cm²) | 0.5 ~ 40 |
|  |
Sensor |  | SFM5216R1 | Sensor Size(mm) | 53.3 * 16 | Sensing Area Size(mm) | 48 * 8 | Number of Channels(Nodes) | 10 * 2 | Pressure Range(kgf/cm²) | 0.4 ~ 30 |
|  |

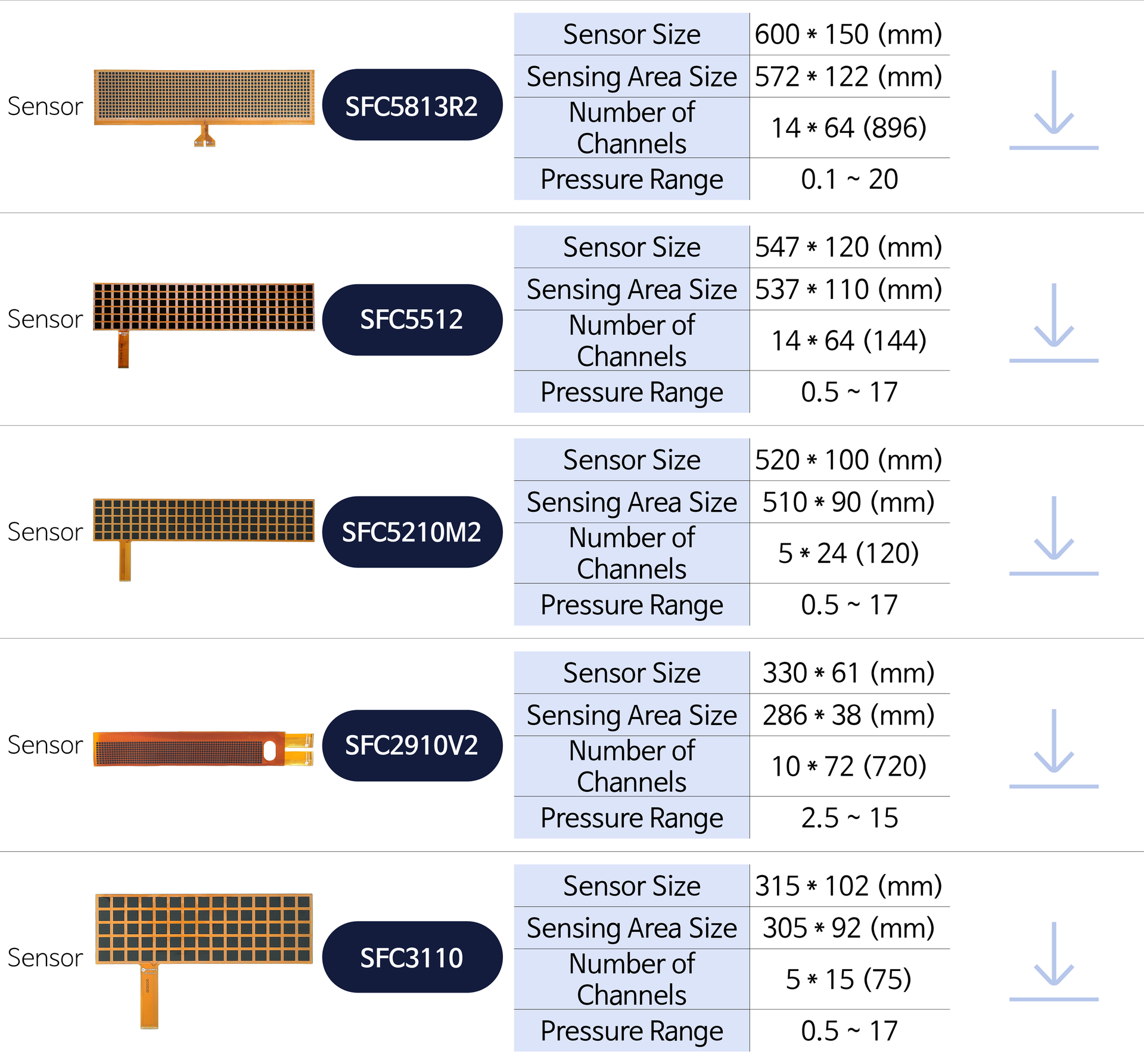

Sensor |

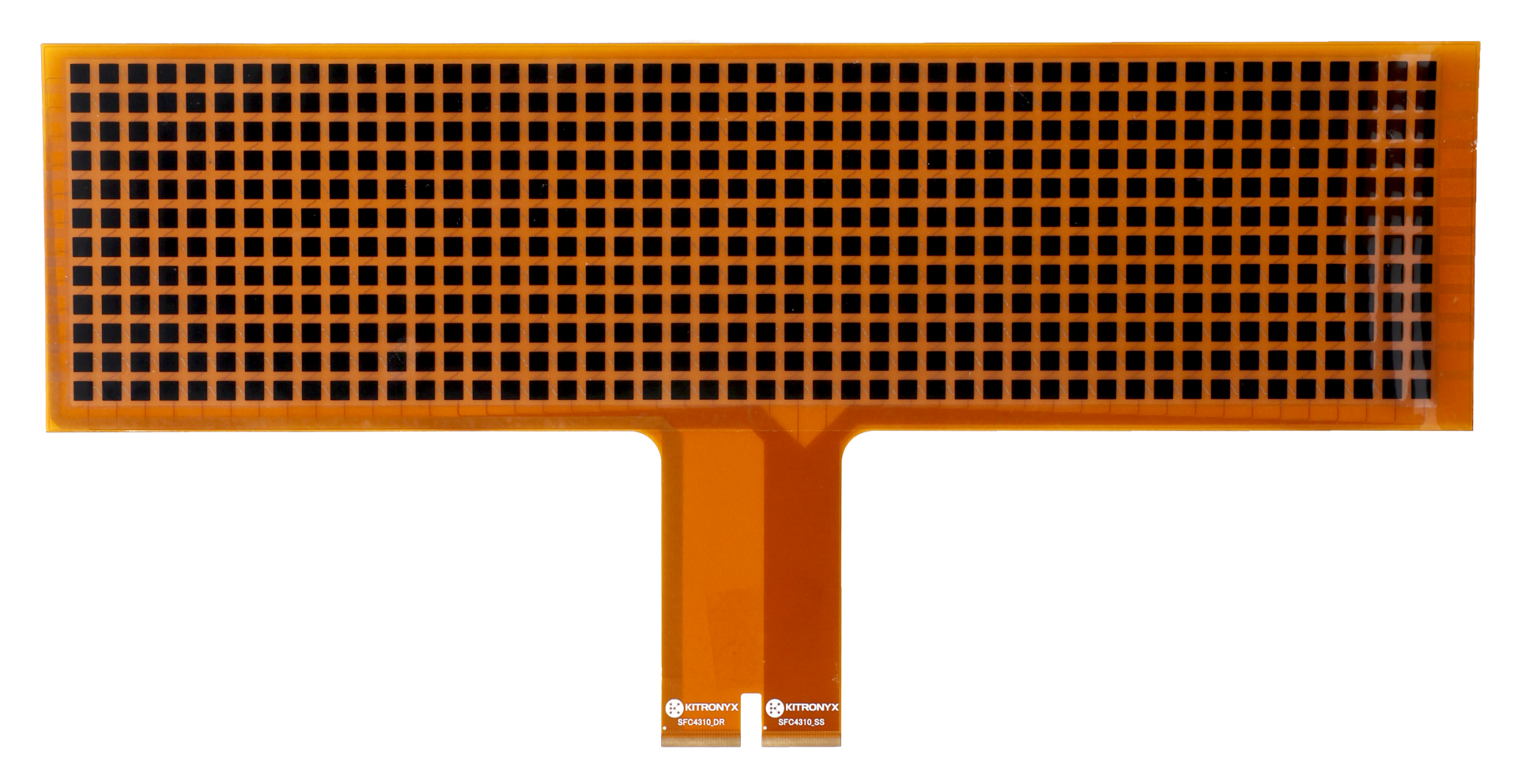

| SFC5813R2 | Sensor Size(mm) | 600 * 150 | Sensing Area Size(mm) | 572 * 122 | Number of Channels(Nodes) | 14 * 64(896) | Pressure Range(kgf/cm²) | 0.1 - 20 |
|  |
Sensor |  | SFC5512 | Sensor Size(mm) | 547 * 120 | Sensing Area Size(mm) | 537 * 110 | Number of Channels(Nodes) | 6 * 24(144) | Pressure Range(kgf/cm²) | 0.5 - 17 |
|  |
Sensor |  | SFC5210M2 | Sensor Size(mm) | 520 * 100 | Sensing Area Size(mm) | 510 * 90 | Number of Channels(Nodes) | 5 * 24(120) | Pressure Range(kgf/cm²) | 0.5 - 17 |
|  |

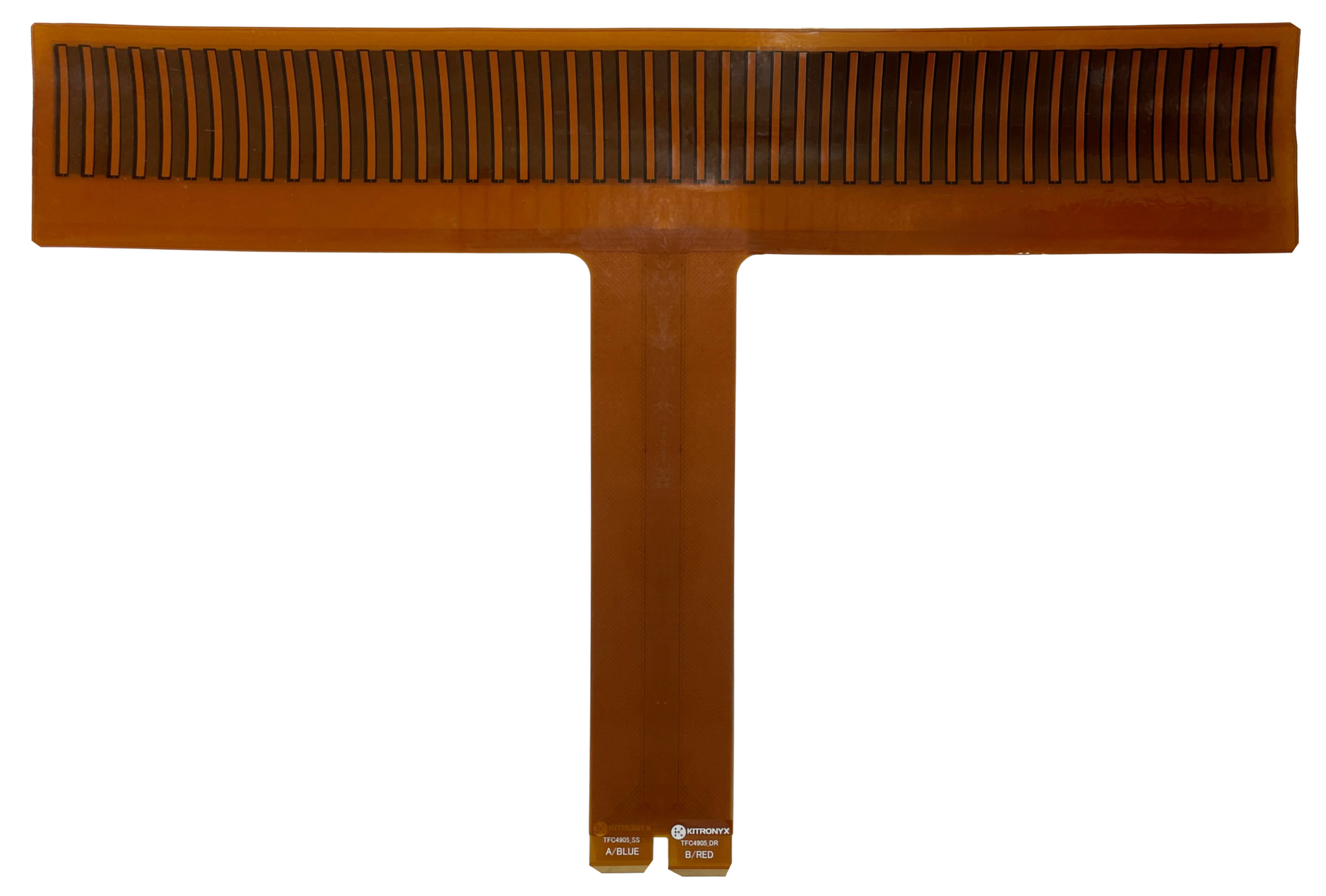

Sensor |  | SFC2910V2 | Sensor Size(mm) | 330 * 61 | Sensing Area Size(mm) | 286 * 38 | Number of Channels(Nodes) | 72 * 10(720) | Pressure Range(kgf/cm²) | 2.5 - 15 |
|  |
Sensor |  | SFC3110 | Sensor Size(mm) | 315 * 102 | Sensing Area Size(mm) | 305 * 92 | Number of Channels(Nodes) | 5 * 15(75) | Pressure Range(kgf/cm²) | 0.5 - 17 |
|  |

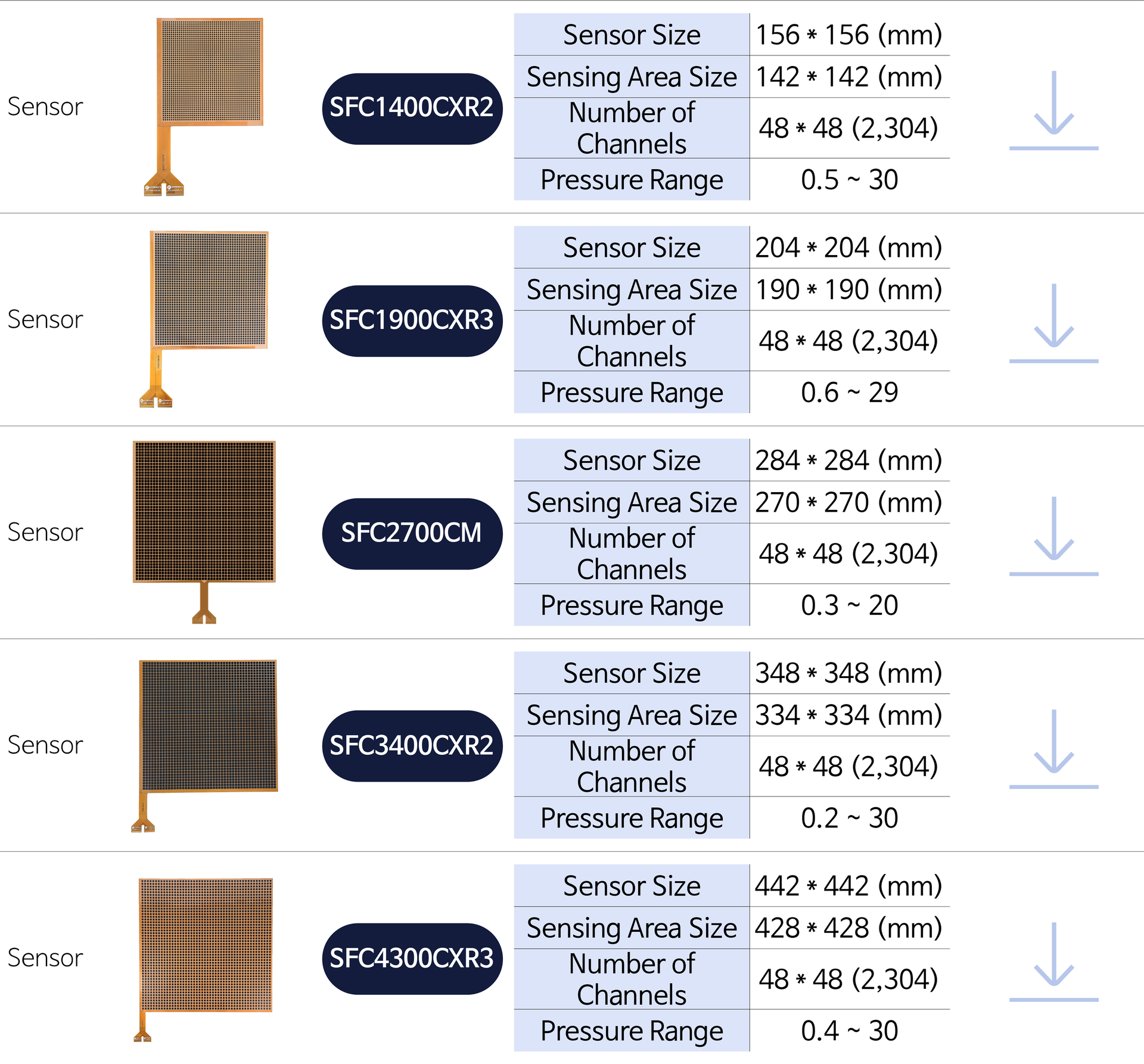

Sensor |  | SFC1400CXR2 | Sensor Size(mm) | 156 * 156 | Sensing Area Size(mm) | 142 * 142 | Number of Channels(Nodes) | 48 * 48(2304) | Pressure Range(kgf/cm²) | 0.5 - 30 |
|  |

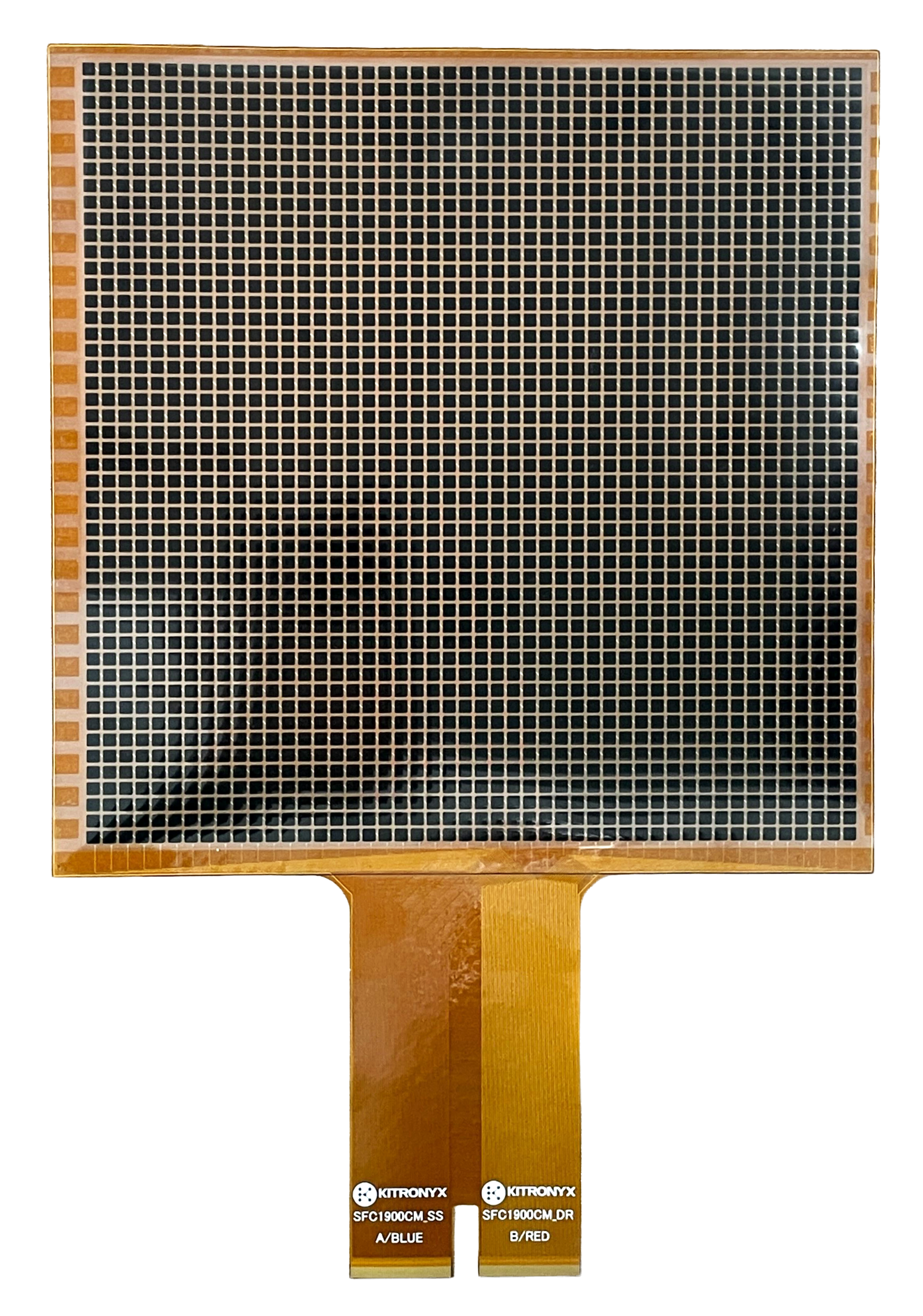

Sensor |  | SFC1900CXR3 | Sensor Size(mm) | 204 * 204 | Sensing Area Size(mm) | 190 * 190 | Number of Channels(Nodes) | 48 * 48(2304) | Pressure Range(kgf/cm²) | 0.6 - 29 |
|  |
Sensor |  | SFC2700CM | Sensor Size(mm) | 284 * 284 | Sensing Area Size(mm) | 270 * 270 | Number of Channels(Nodes) | 48 * 48(2304) | Pressure Range(kgf/cm²) | 0.3 - 20 |
|  |
Sensor |  | SFC3400CXR2 | Sensor Size(mm) | 348 * 348 | Sensing Area Size(mm) | 334 * 334 | Number of Channels(Nodes) | 48 * 48(2304) | Pressure Range(kgf/cm²) | 0.2 - 30 |
|  |
Sensor |  | SFC4300CXR3 | Sensor Size(mm) | 442 * 442 | Sensing Area Size(mm) | 428 * 428 | Number of Channels(Nodes) | 48 * 48(2304)
| Pressure Range(kgf/cm²) | 0.4 - 30 |
|  |

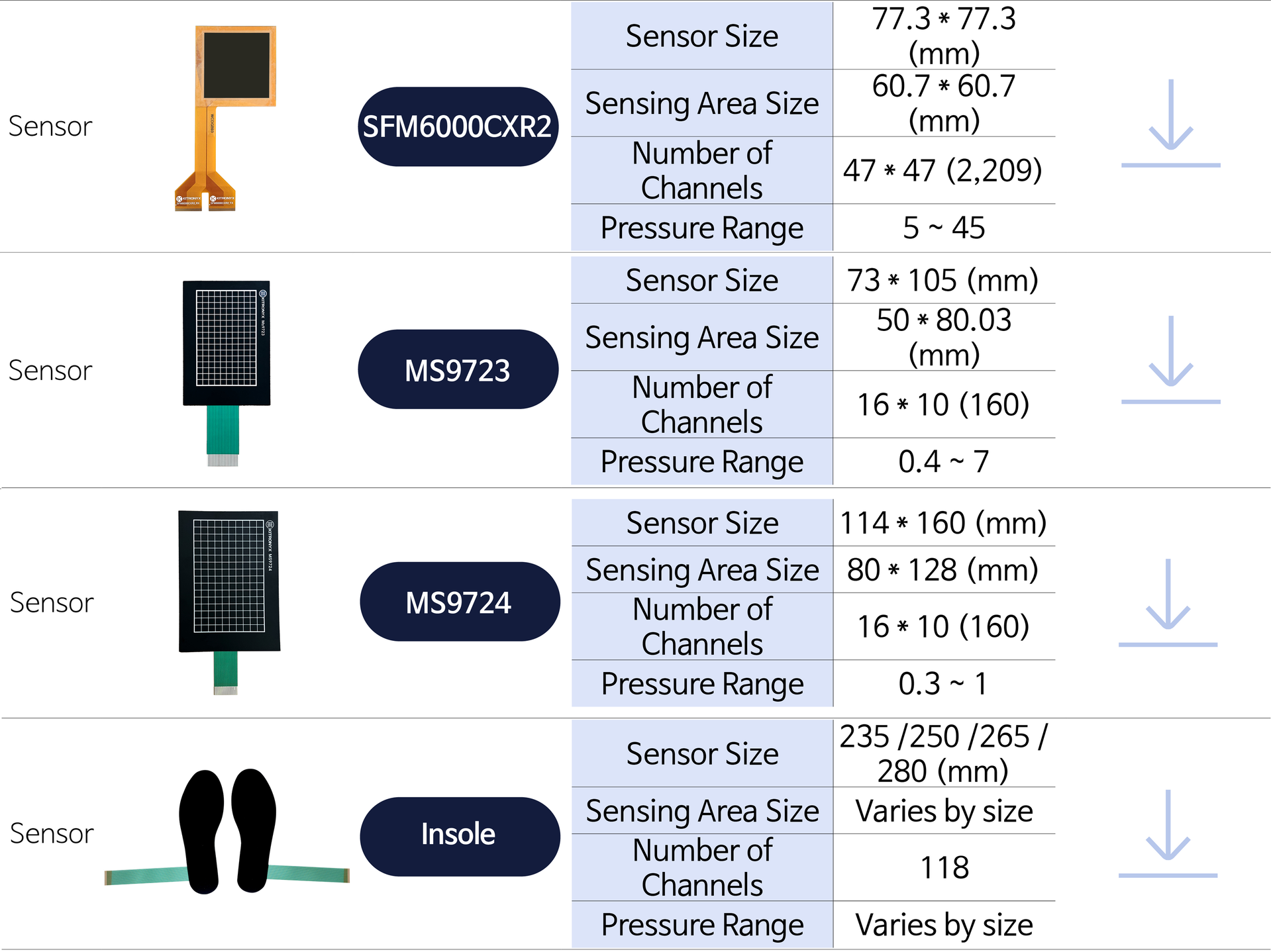

Sensor |  | SFM6000CXR2 | Sensor Size(mm) | 77.3 * 77.3 | Sensing Area Size(mm) | 60.7 * 60.7 | Number of Channels(Nodes) | 47 * 47(2209) | Pressure Range(kgf/cm²) | 5 - 45 |
|
|
Sensor |  | MS9723 | Sensor Size(mm) | 73 * 105 | Sensing Area Size(mm) | 50 * 80.03 | Number of Channels(Nodes) | 16 * 10(160) | Pressure Range(kgf/cm²) | 0.4 - 7 |
|  |
Sensor |  | MS9724 | Sensor Size(mm) | 114 * 160 | Sensing Area Size(mm) | 80 * 128 | Number of Channels(Nodes) | 16 * 10(160) | Pressure Range(kgf/cm²) | 0.3 - 1 |
|  |
Sensor |  | Insole | Sensor Size(mm) | 235 / 250 /265 /280 | Sensing Area Size(mm) | Varies by size | Number of Nodes(Nodes) | 118 | Pressure Range(kgf/cm²) | Varies by size |
|  |
