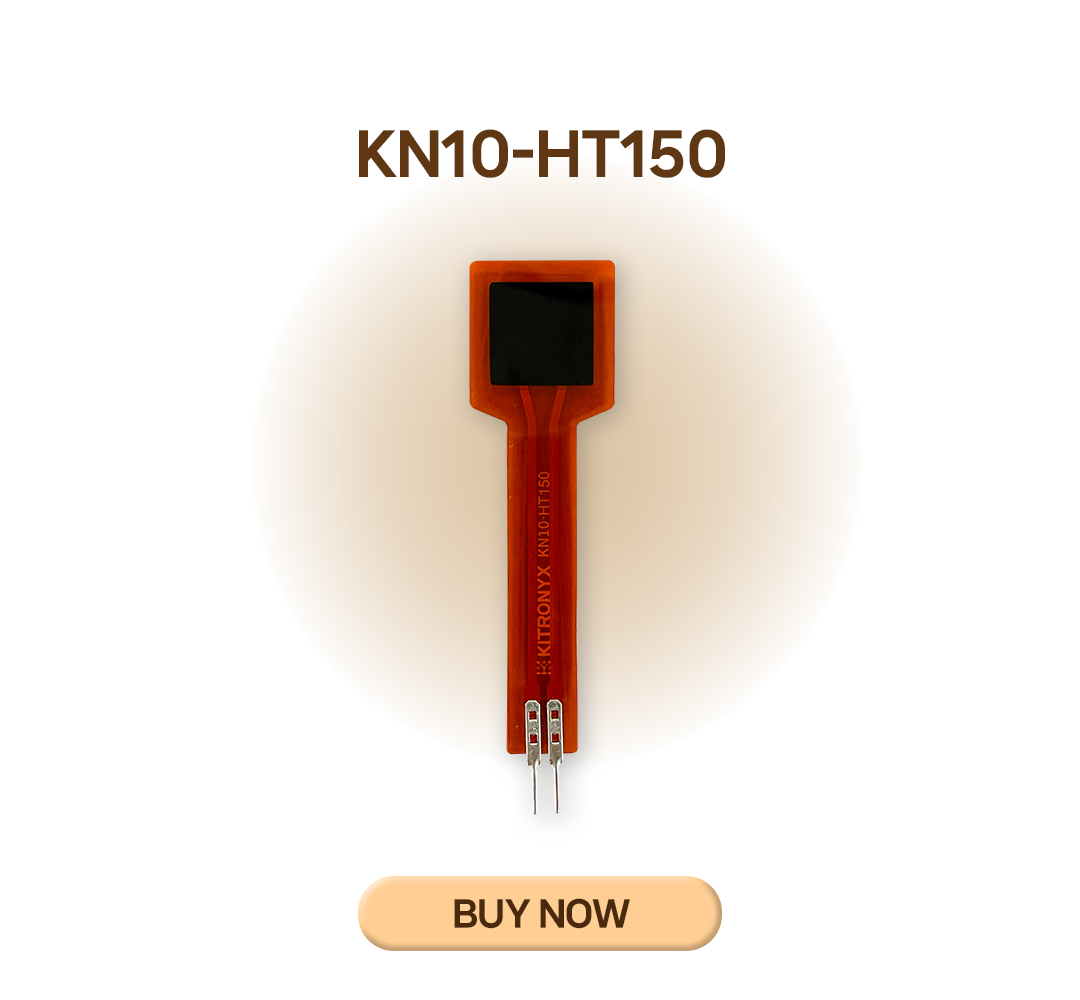

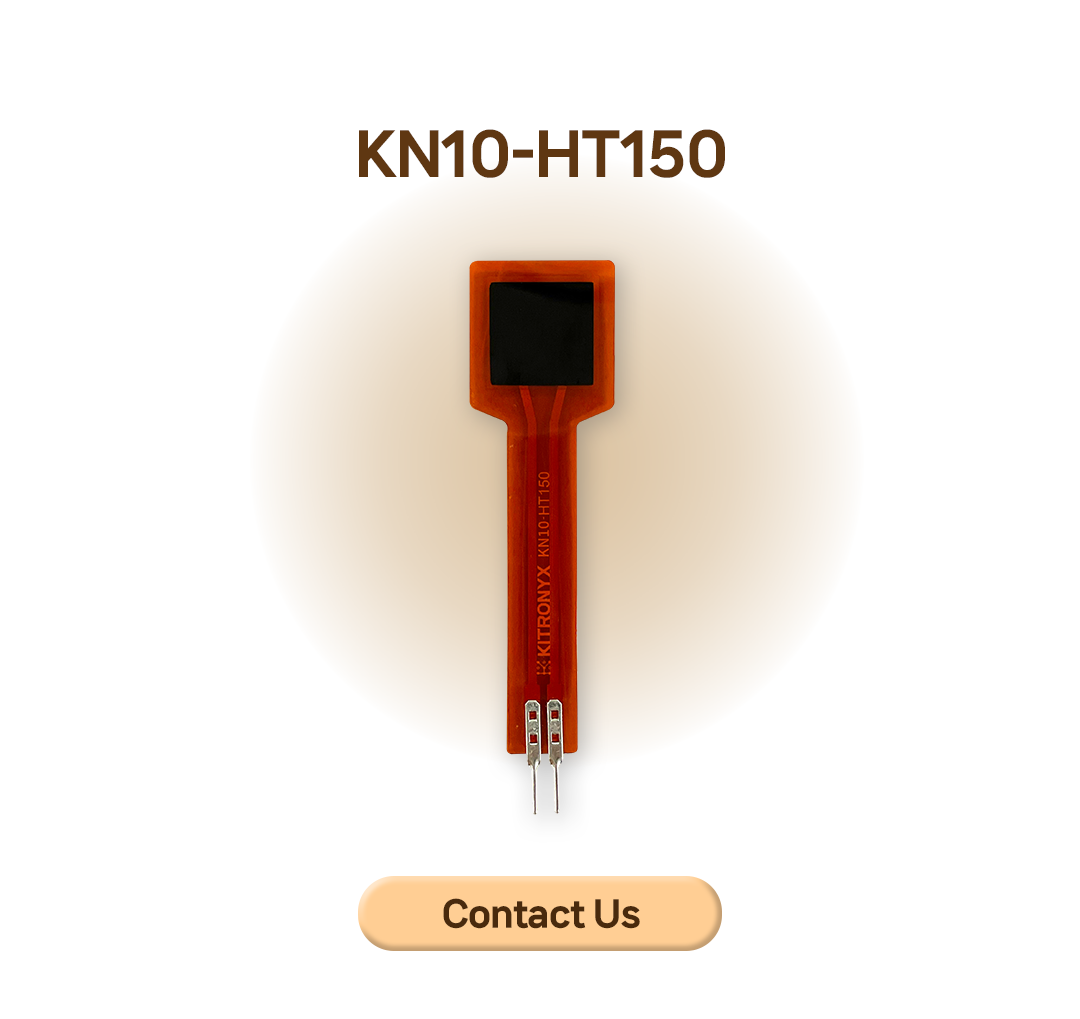

KN10-HT150
- The KN10-HT150 is a high-temperature sensor model developed based on the KN10 single-cell FSR sensor. Its key feature is the ability to reliably detect pressure variations even in high-temperature environments of up to 150°C.
- It is particularly suitable for measuring and analyzing localized pressure changes in high-heat conditions, and can be effectively utilized in tight or flexible installation settings.
※ For detailed specifications, please refer to the datasheet.

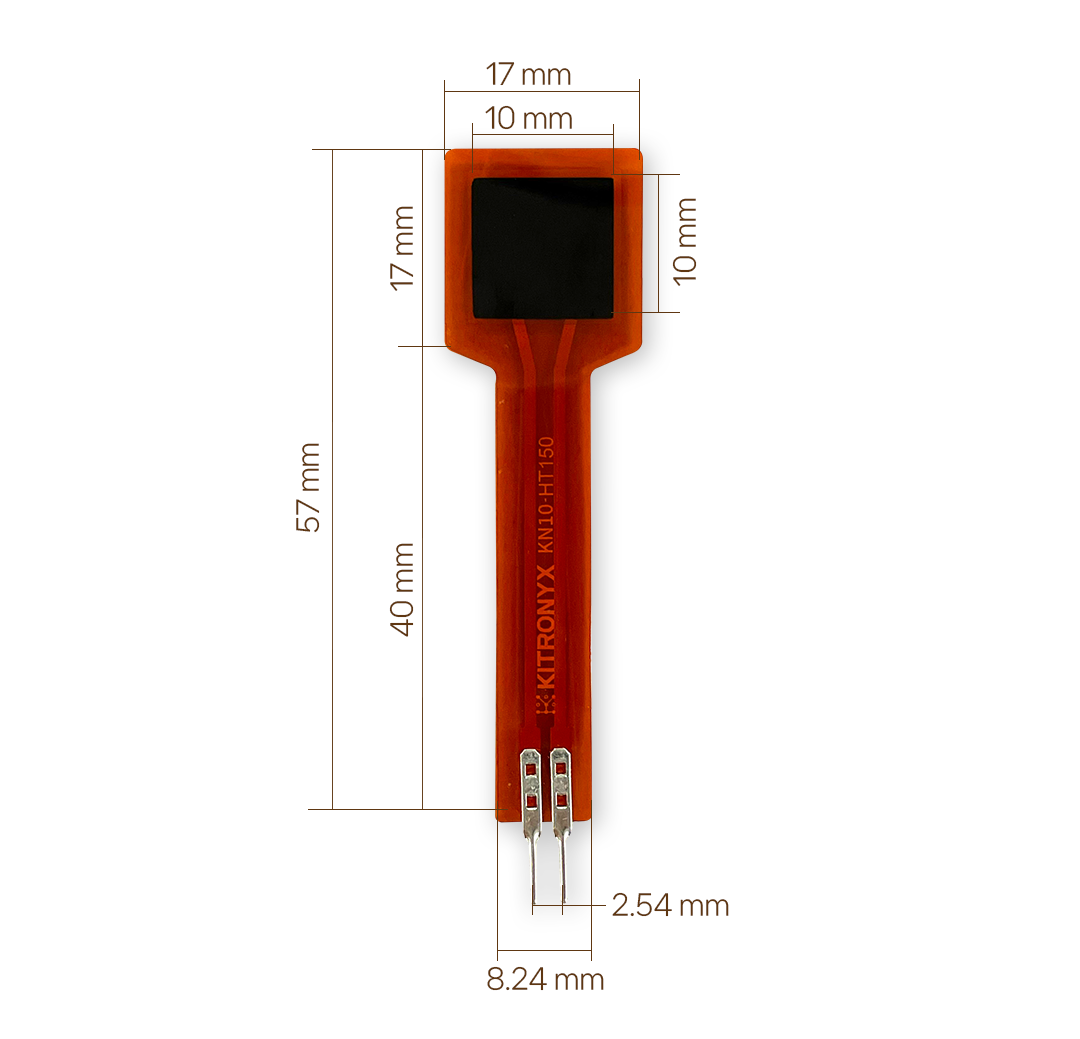

KN10-HT150_Characteristics
| Sensor Size (mm) | 17 x 17 | Sensing Area Size (mm) | 10 x 10 |
| Node Size (mm) | 10 x 10 | Thickness (μm) | ﹤ 270 |
| Technology | Piezoresistive | Matrix Type | Shunt |
| Minimum Pressure (kgf/cm²) | 0.5 | Maximum Pressure (kgf/cm²) | 45 |
| Temperature Range | -20~150℃ | Compatible Electronics | Tinn |
* This sensor is sensitive to humidity and should be stored and used under conditions with relative humidity below 50%.
* The KN10-HT150 provides reliable pressure variation data even in high-temperature environments.

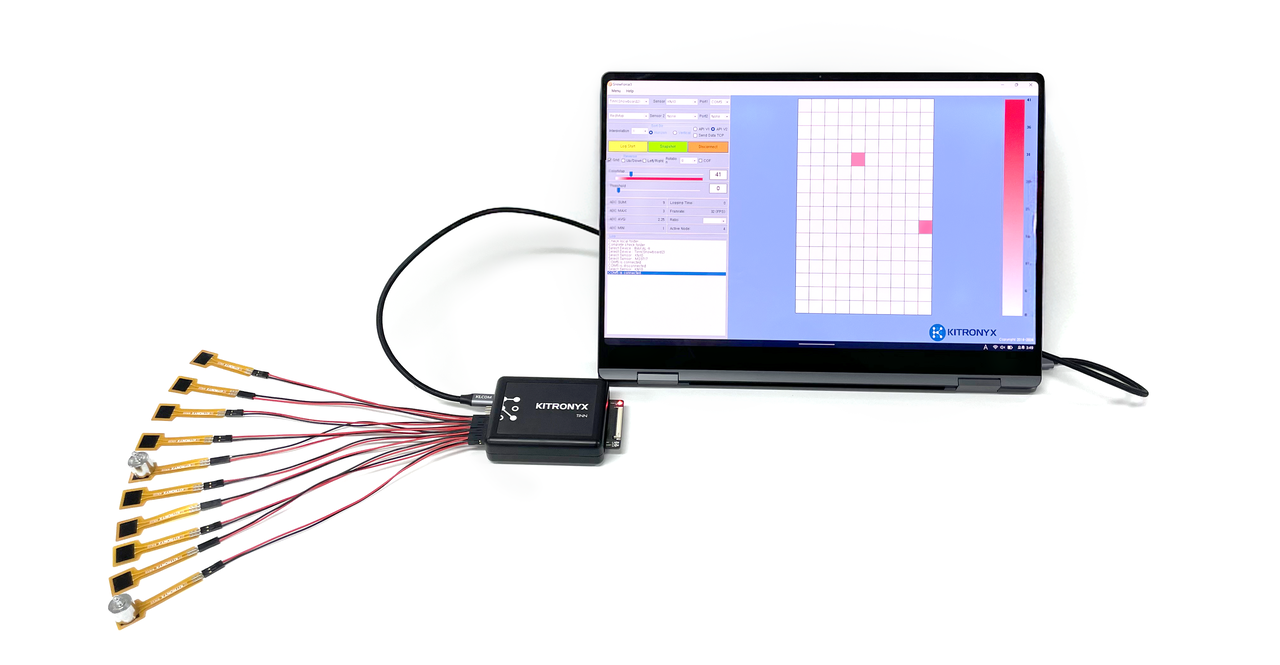

"Efficient real-time pressure variation monitoring is possible using the MonoCell solution."
- Like the KN10, it features a pin-type structure that enables easy integration with various systems.
- When used with the MonoCell solution, it supports real-time multi-sensor data analysis and visualization with up to 10 sensors.
