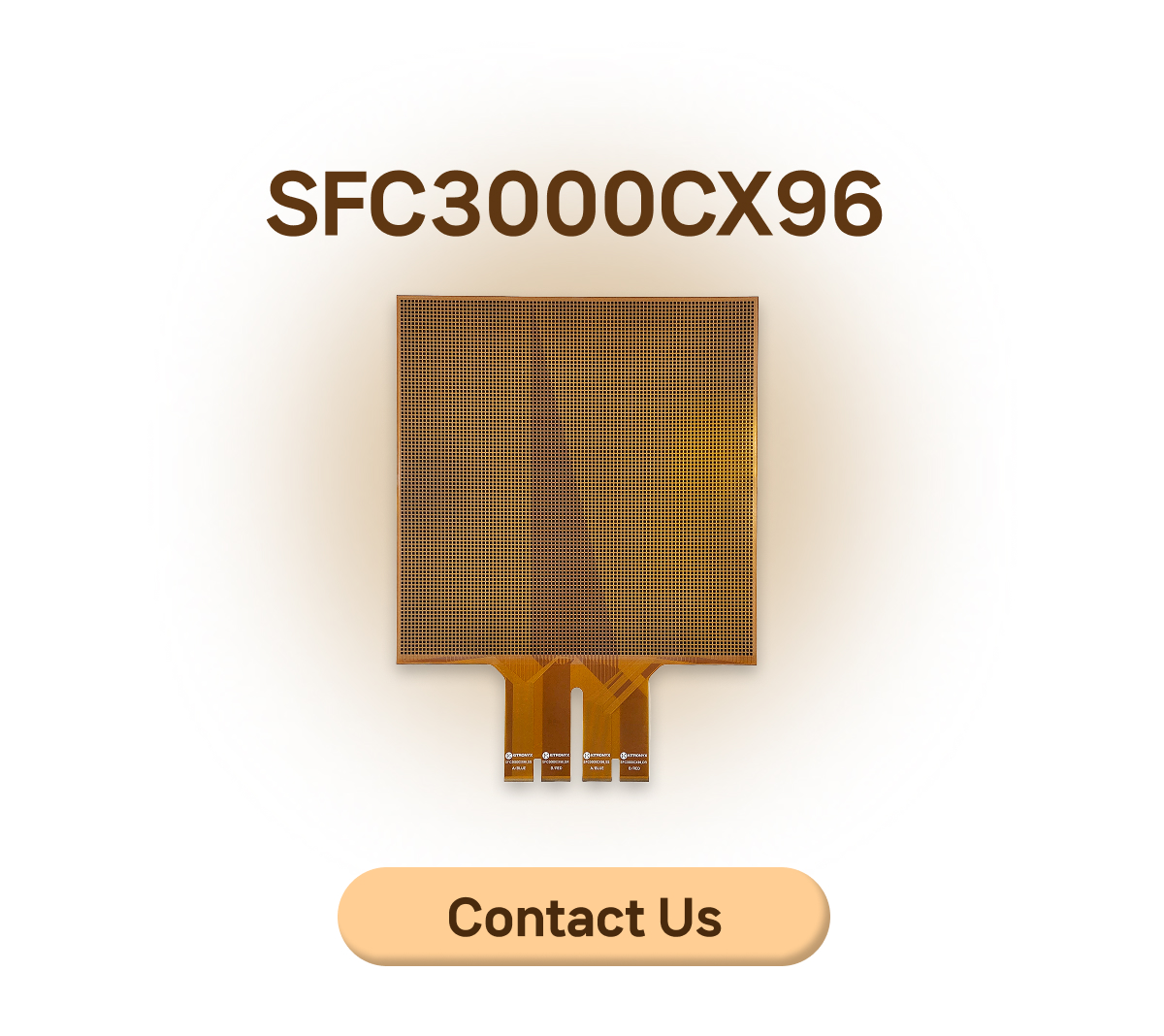

SFC3000CX96
This product is a thin film-type FSR sensor designed for measuring pressure distribution in various industrial processes.
SFC3000CX96_Characteristics

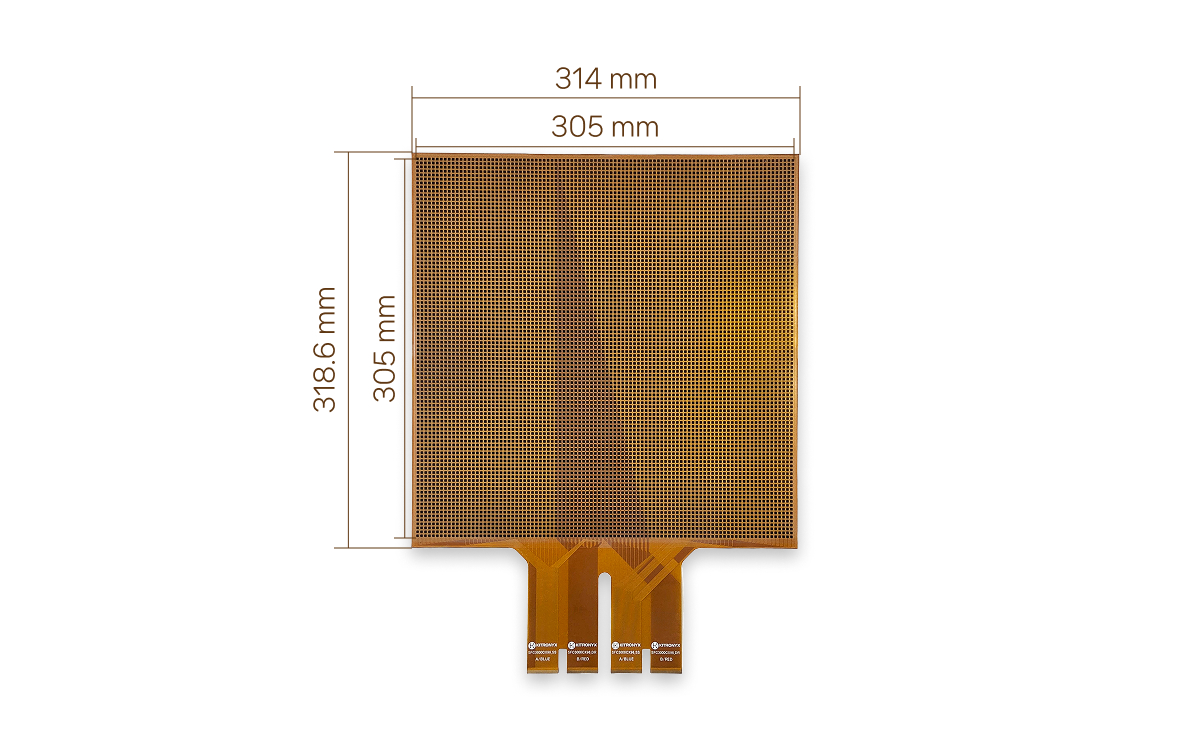

| Sensor Size (mm) | 314 x 318.6 | Sensing Area Size (mm) | 305 x 305 |
| Node Size (mm) | 1 x 1 | Pitch(=Center ot Center) (mm) | 3.2 x 3.2 |
| Technology | Piezoresistive | Matrix Type | Shunt |
| Minimum Pressure (kgf/cm²) | 0.4 | Maximum Pressure (kgf/cm²) | 20 |
| Temperature Range | Room Temperature | Compatible Electronics | CASS9600 |
| Number of Rows | 96 | Number of Columns | 96 |
| Number of Nodes | 9,216 (96 x 96) | Thickness (μm) | Bezel area: ≤300 Sensing area: ≤ 270 |
