SFC5000
This product is a thin film-type FSR sensor designed for measuring pressure distribution in various industrial processes.
SFC5000_Characteristics

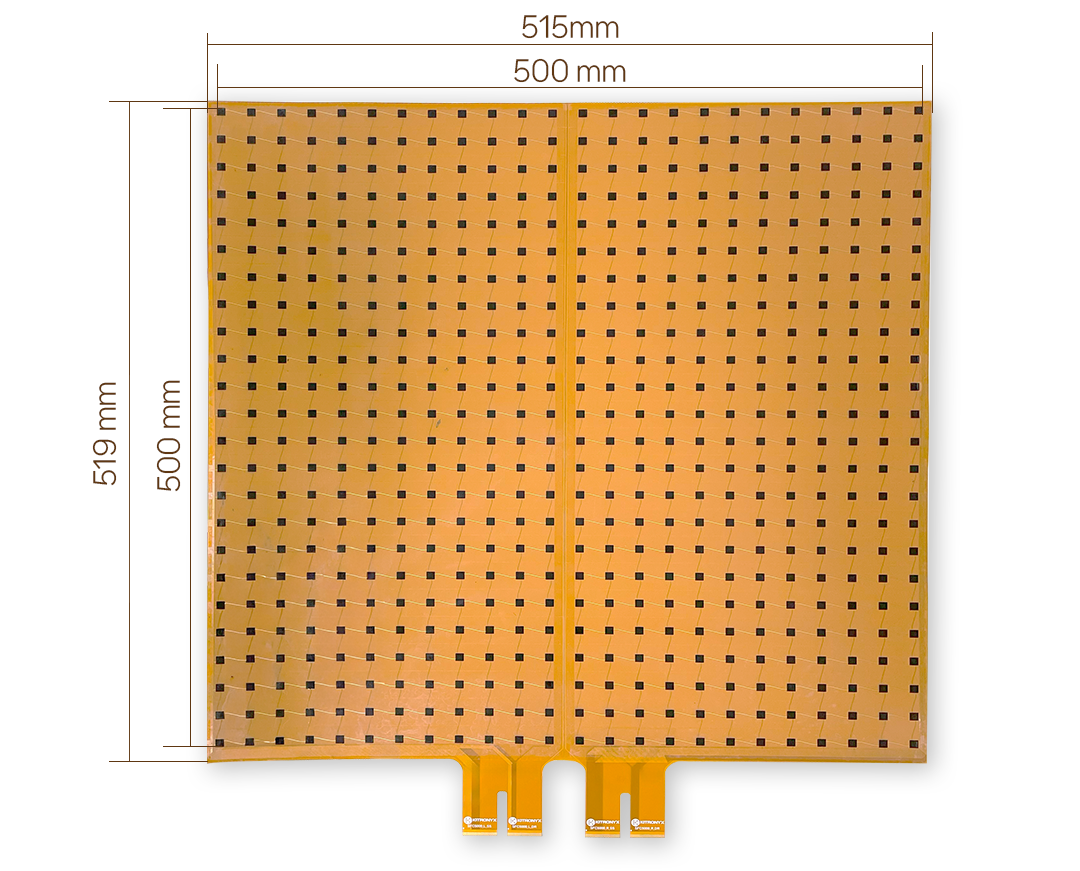

| Sensor Size (mm) | 515 x 519 | Sensing Area Size (mm) | 500 x 500 |
| Node Size (mm) | 5 x 5 | Pitch(=Center ot Center) (mm) | 22 x 22 |
| Technology | Piezoresistive | Matrix Type | Shunt |
| Minimum Pressure (kgf/cm²) | 0.2 | Maximum Pressure (kgf/cm²) | 45 |
| Temperature Range | Room Temperature | Compatible Electronics | Baikal ll / Baikal ll WIFI |
| Number of Rows | 24 | Number of Columns | 24 |
| Number of Nodes | 576 (24 x 24) | Thickness (μm) | Bezel area: ≤ 300 Sensing area: ≤ 270 |
