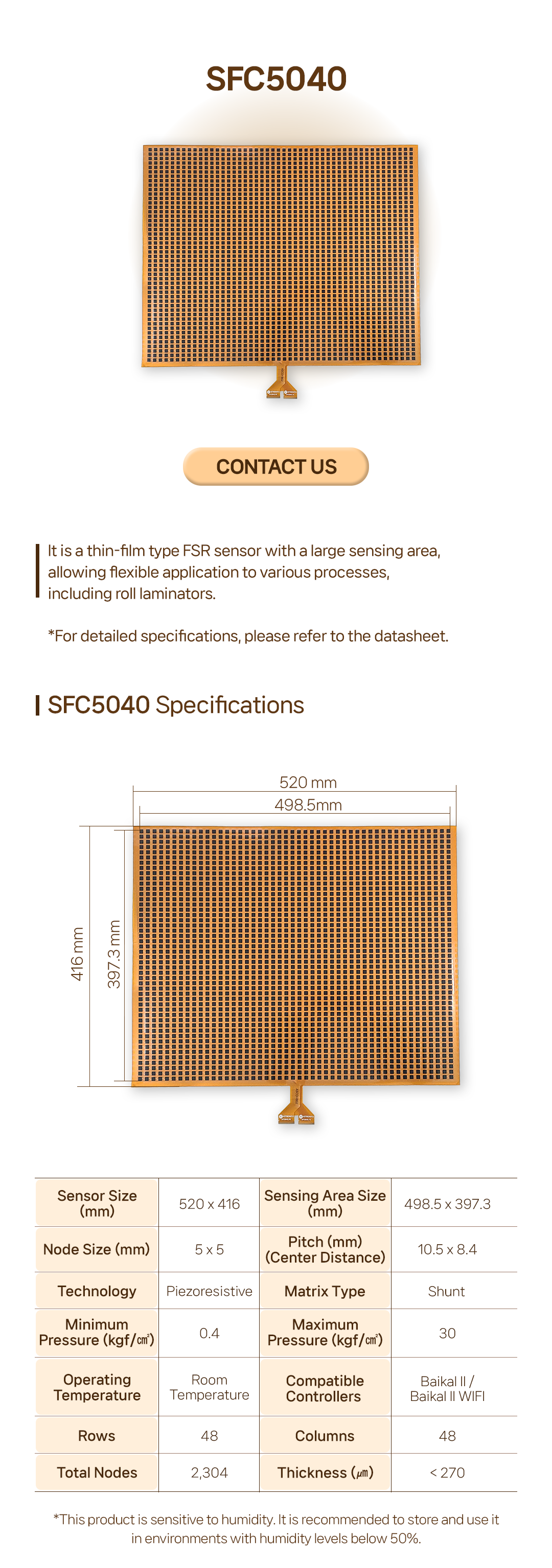

SFC5040

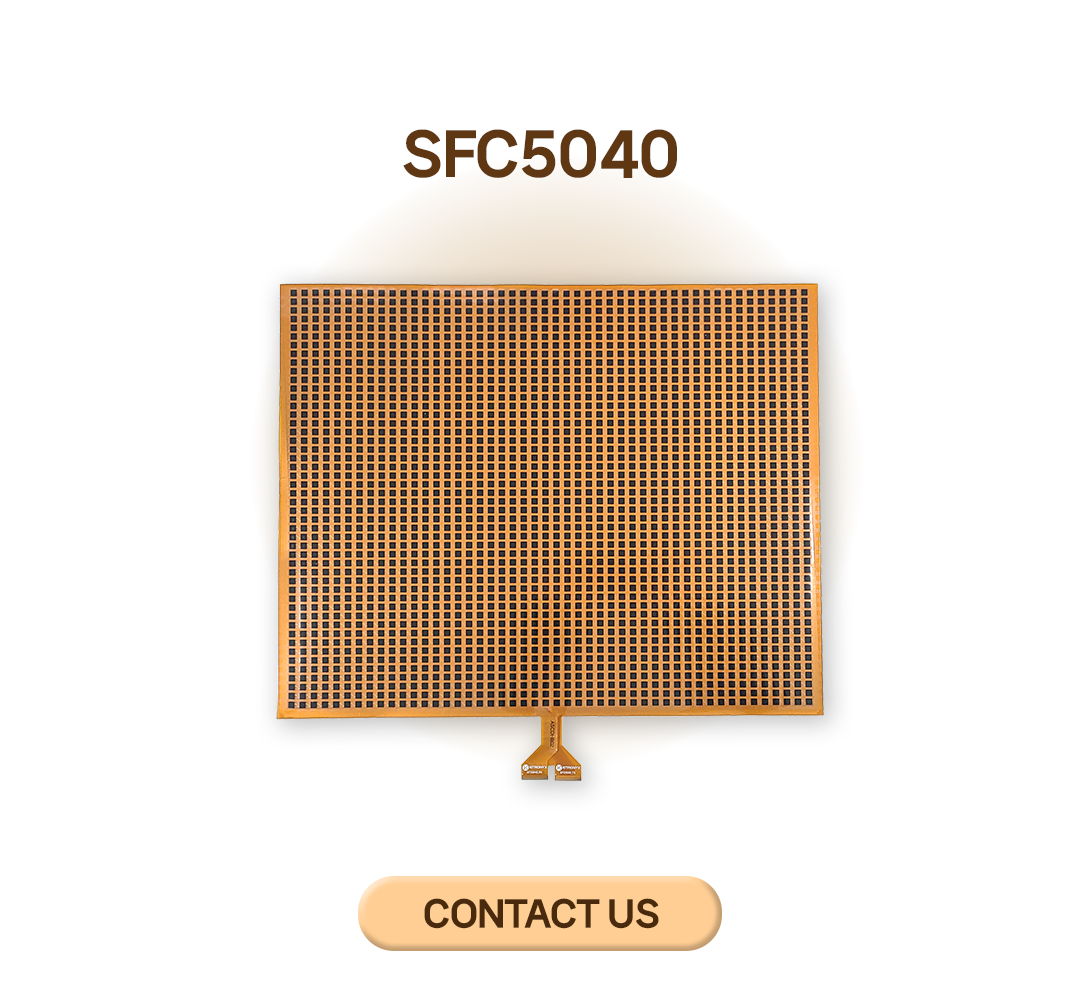

It is a thin-film type FSR sensor with a large sensing area, allowing flexible application to various processes, including roll laminators.
* For detailed specifications, please refer to the datasheet.
SFC5040_Characteristics

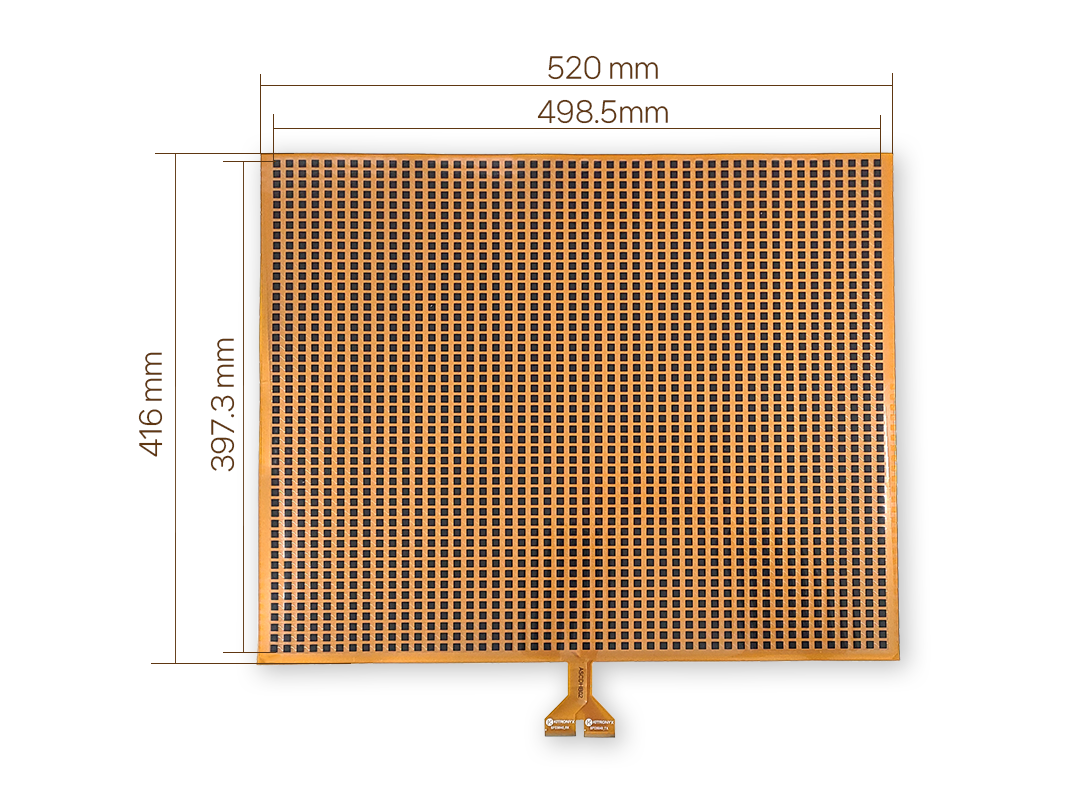

| Sensor Size (mm) | 520 x 416 | Sensing Area Size (mm) | 498.5 x 397.3 |
| Node Size (mm) | 5 x 5 | Pitch(=Center ot Center) (mm) | 10.5 x 8.4 |
| Technology | Piezoresistive | Matrix Type | Shunt |
| Minimum Pressure (kgf/cm²) | 0.4 | Maximum Pressure (kgf/cm²) | 30 |
| Temperature Range | Room Temperature | Compatible Controllers | Baikal ll / Baikal ll WIFI |
| Number of Rows | 48 | Number of Columns | 48 |
| Number of Nodes | 2,304 | Thickness (μm) | ﹤ 270 |
Pressure uniformity by numerical values, Process Optimization Through Data
The PressureScan ll is an automation solution for quality control that visualizes pressure distribution in real-time and records and tracks changes over time. It can completely replace pressure indicating film.

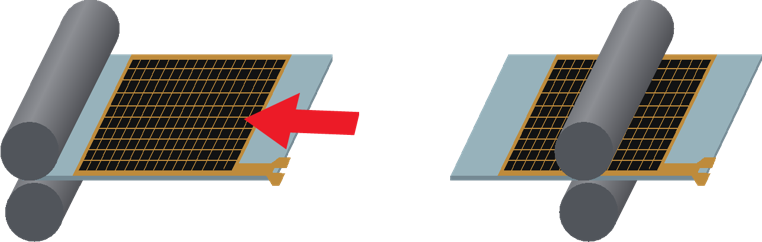

The sensors are flexible and can be chosen according to the equipment size and spatial resolution, making them suitable for various industrial processes. Particularly, the SFC5040 is ideal for pressure uniformity measurements in continuous compression processes or large-area processes, such as roll laminators, due to its wide sensing area.
In the video below, you can see an example of applying the system to a roll laminator and visualize the pressure distribution. The measured data is stored as numerical values, which can then be used for further analysis.

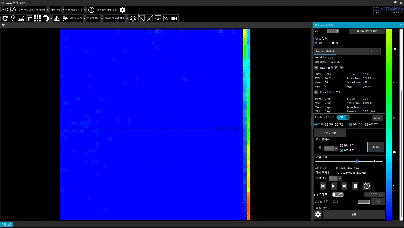

Accumulate Mode

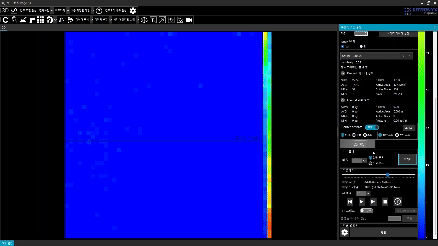

Normal Mode
