SFC5813R2
This product is a thin film-type FSR sensor designed for measuring pressure distribution in various industrial processes.
SFC5813R2_Characteristics

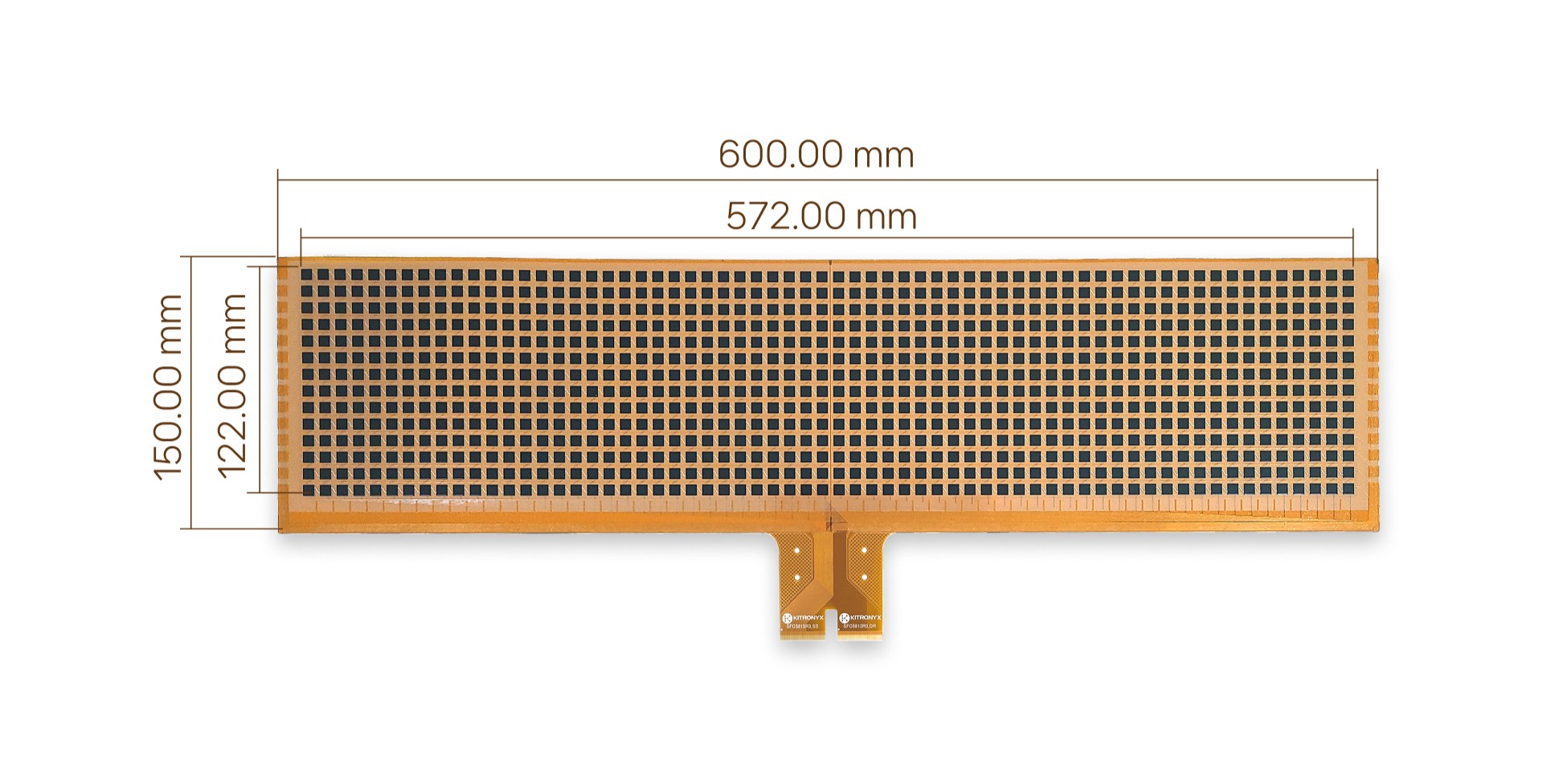

| Sensor Size (mm) | 600 x 150 | Sensing Area Size (mm) | 572 x 122 |
| Node Size (mm) | 5 x 5 | Pitch(=Center ot Center) (mm) | 9 x 9 |
| Technology | Piezoresistive | Matrix Type | Shunt |
| Minimum Pressure (kgf/cm²) | 0.1 | Maximum Pressure (kgf/cm²) | 20 |
| Temperature Range | Room Temperature | Compatible Electronics | Baikal ll / Baikal ll WIFI |
| Number of Rows | 14 | Number of Columns | 64 |
| Number of Nodes | 896 (14 x 64) | Thickness (μm) | ๏นค 270 |
