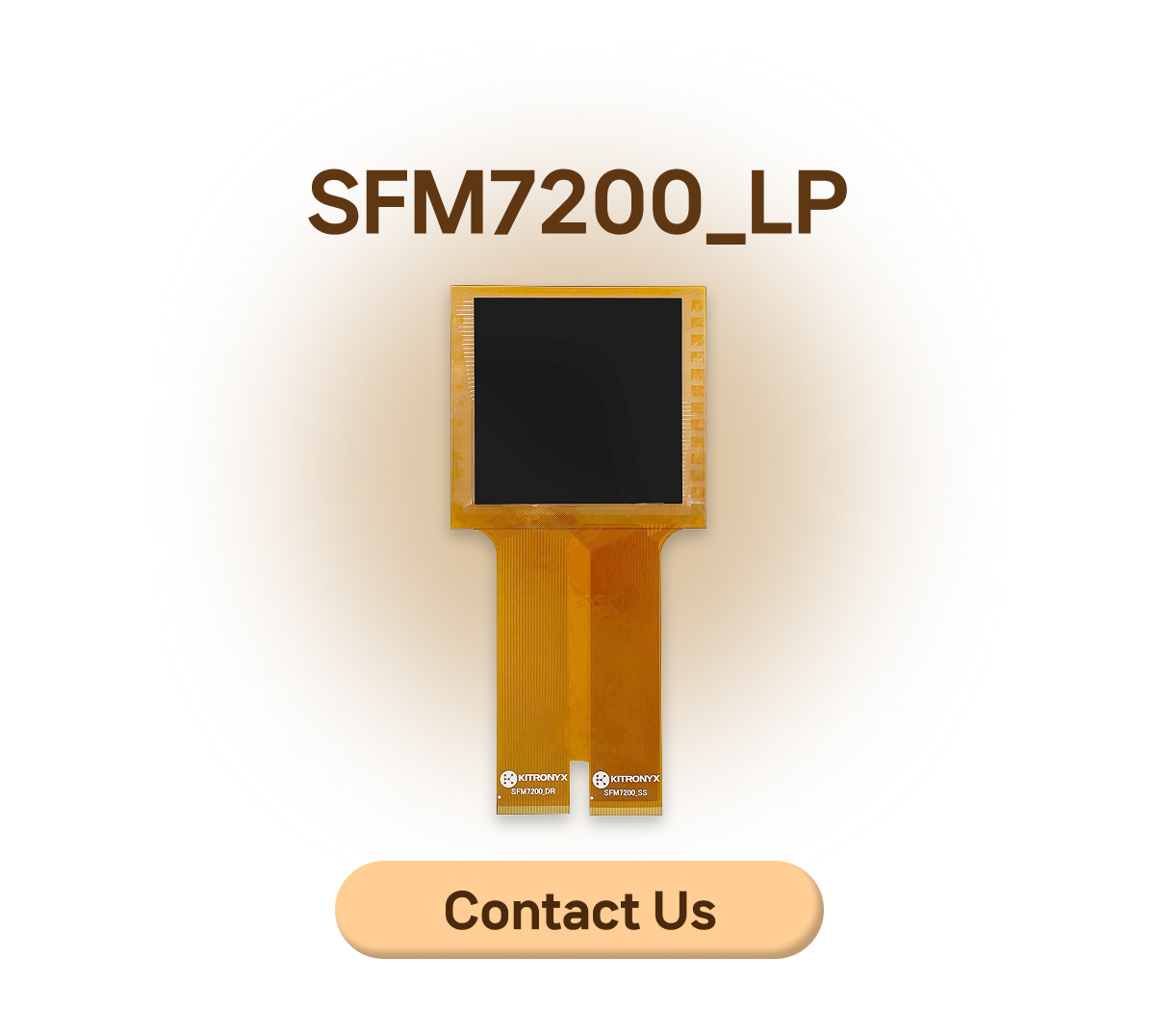

SFM7200_LP
This product is a thin film-type FSR sensor designed for measuring pressure distribution in various industrial processes.
SFM7200_LP_Characteristics

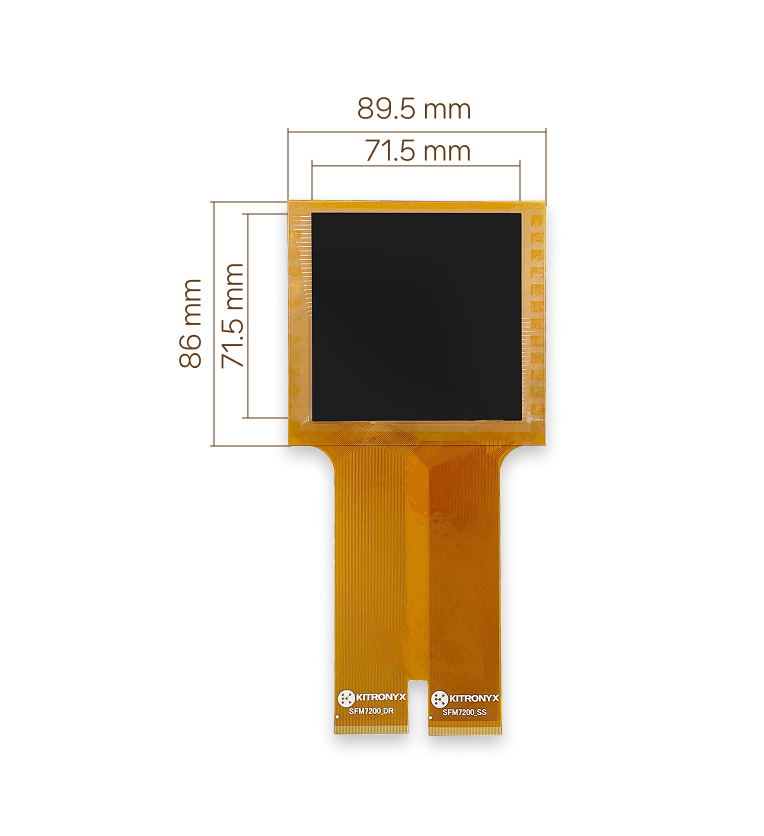

| Sensor Size (mm) | 89.5 x 86 | Sensing Area Size (mm) | 71.5 x 71.5 |
| Node Size (mm) | 1 x 1 | Pitch(=Center ot Center) (mm) | 1.5 x 1.5 |
| Technology | Piezoresistive | Matrix Type | Shunt |
| Minimum Pressure (kgf/cm²) | 0.12 | Maximum Pressure (kgf/cm²) | 3.91 |
| Temperature Range | Room Temperature | Compatible Electronics | Baikal ll / Baikal ll WIFI |
| Number of Rows | 48 | Number of Columns | 48 |
| Number of Nodes | 2,304 (48 x 48) | Thickness (μm) | Bezel area: ≤ 300 Sensing area: ≤ 270 |
