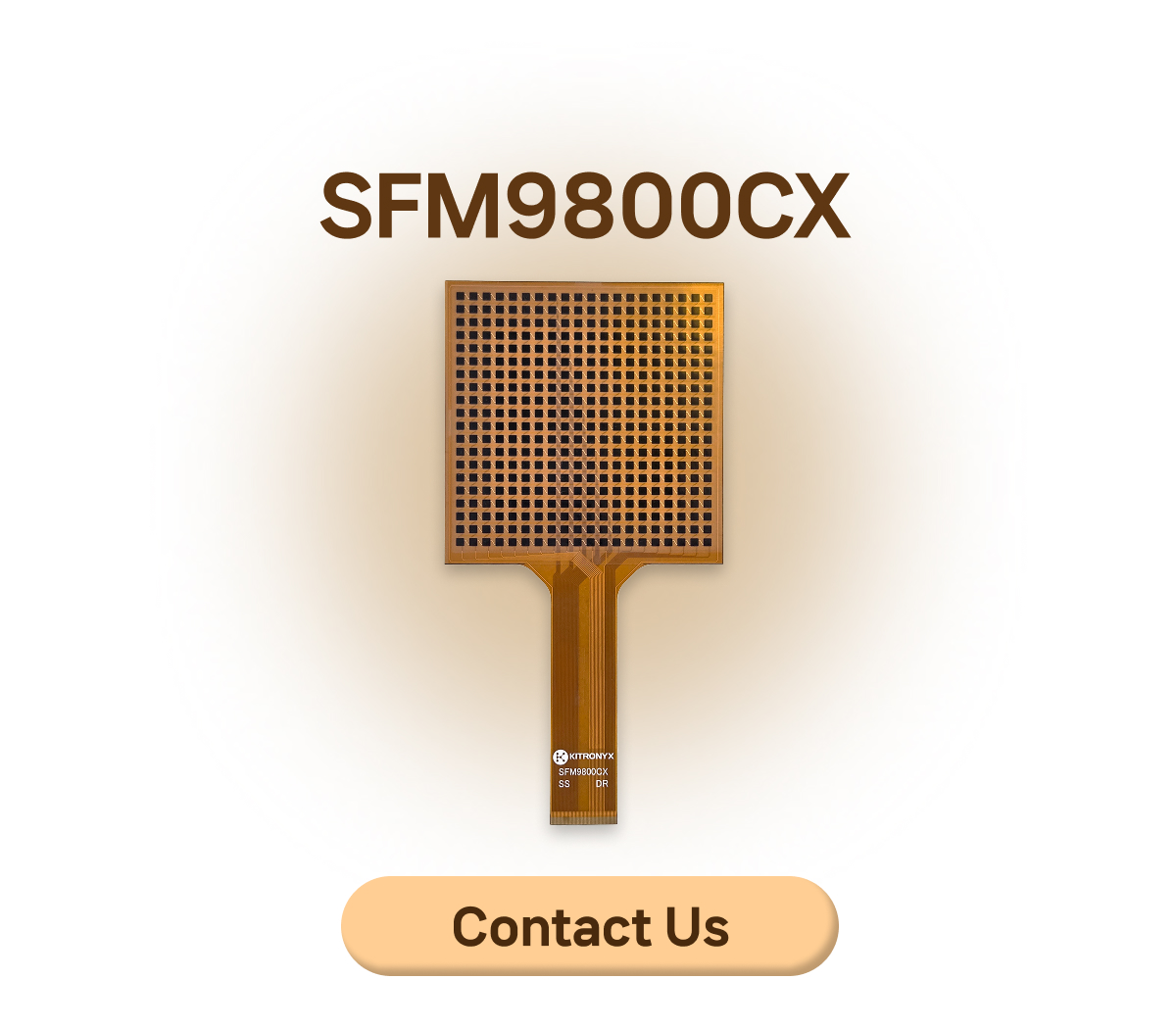

SFM9800CX
This product is a thin film-type FSR sensor designed for measuring pressure distribution in various industrial processes.
SFM9800CX_Characteristics

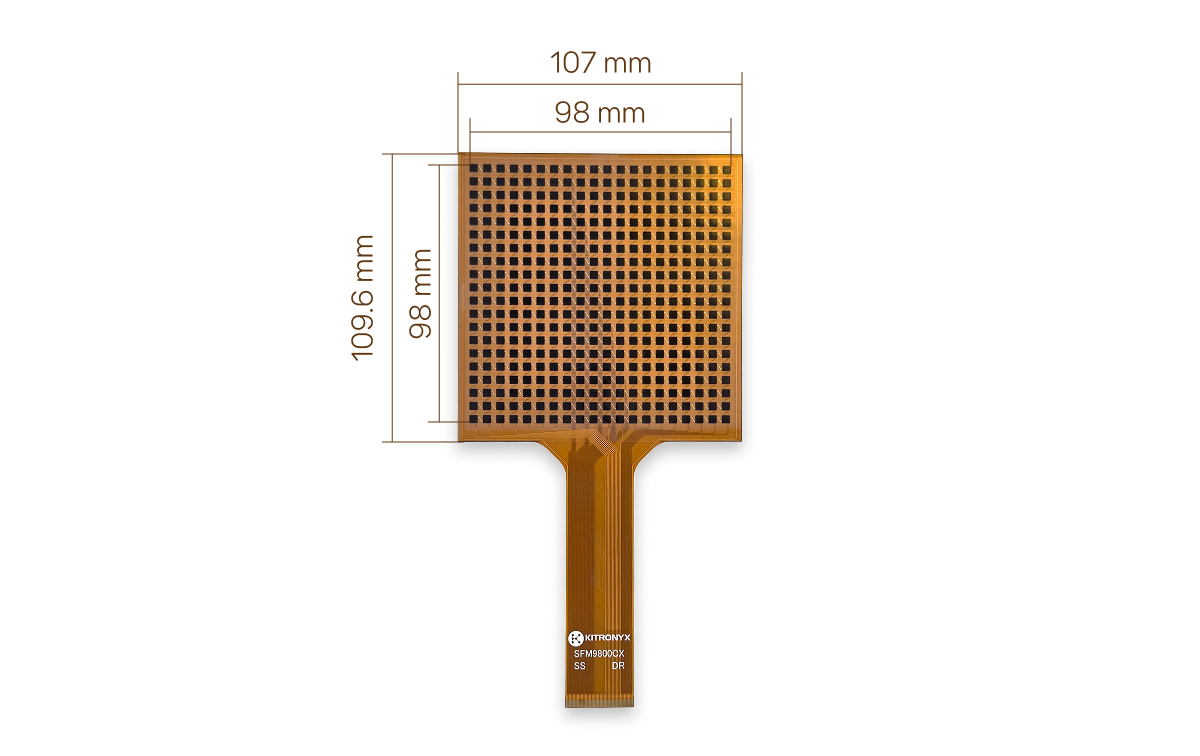

| Sensor Size (mm) | 107 x 109.6 | Sensing Area Size (mm) | 98 x 98 |
| Node Size (mm) | 3 x 3 | Pitch(=Center ot Center) (mm) | 5 x 5 |
| Technology | Piezoresistive | Matrix Type | Shunt |
| Minimum Pressure (kgf/cm²) | 0.4 | Maximum Pressure (kgf/cm²) | 30 |
| Temperature Range | Room Temperature | Compatible Electronics | Baikal ll / Baikal ll WIFI |
| Number of Rows | 20 | Number of Columns | 20 |
| Number of Nodes | 400 (20 x 20) | Thickness (μm) | Bezel area: ≤300 Sensing area: ≤ 270 |
