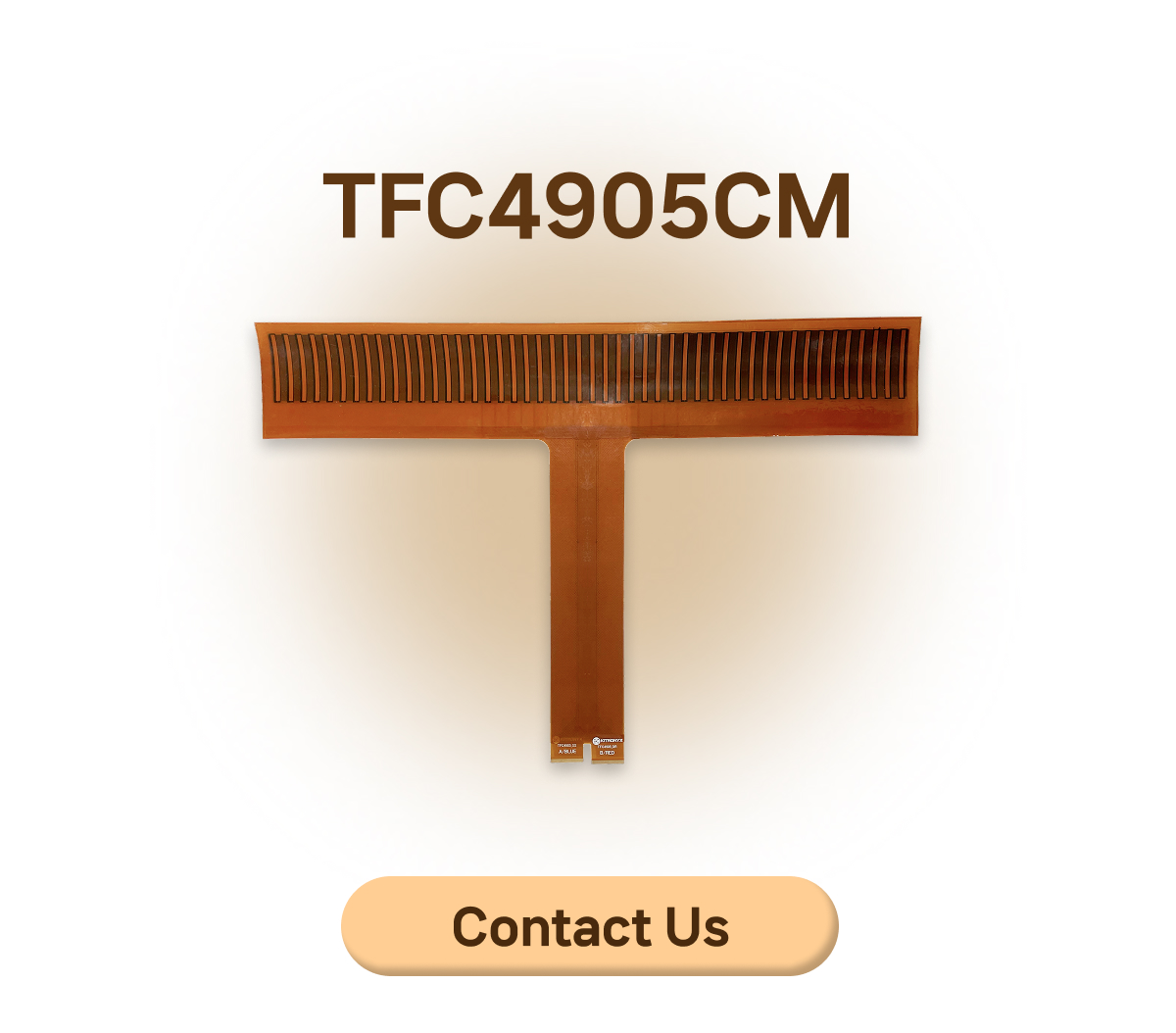

TFC4905CM
This product is a thin film-type FSR sensor designed for measuring pressure distribution in various industrial processes.
TFC4905CM_Characteristics

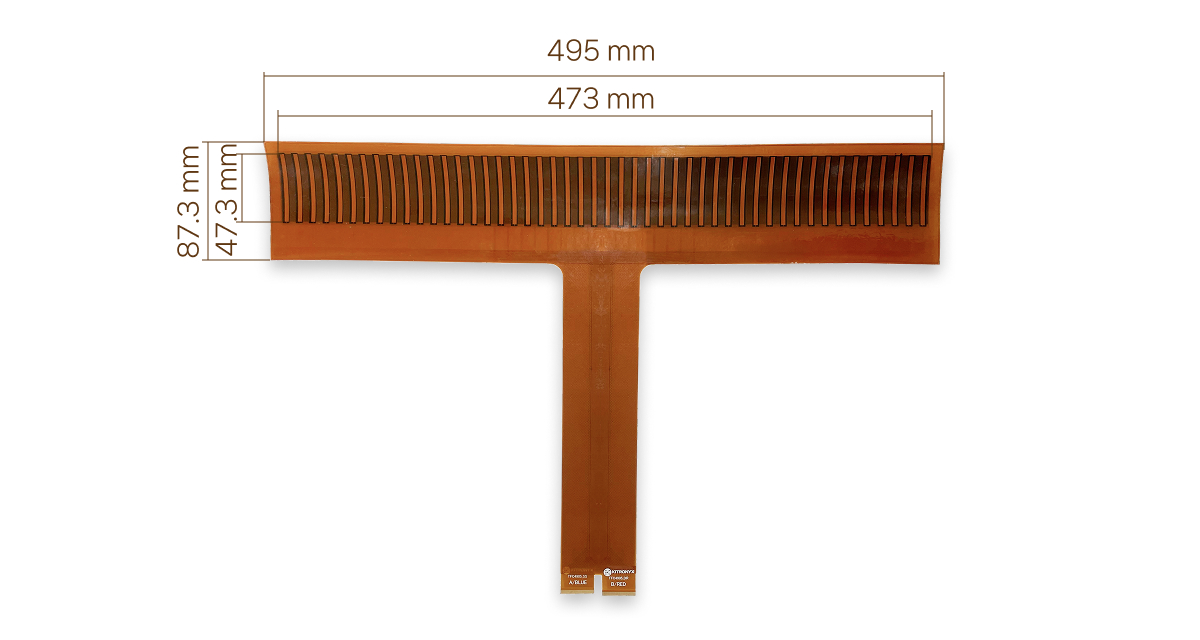

| Sensor Size (mm) | 495 x 87.3 | Sensing Area Size (mm) | 473 x 47.3 |
| Node Size (mm) | 3 x 0.3 | Pitch(=Center ot Center) (mm) | 10 x 1 |
| Technology | Piezoresistive | Matrix Type | Thru |
| Minimum Pressure (kgf/cm²) | 0.41 | Maximum Pressure (kgf/cm²) | 27.34 |
| Temperature Range | Room Temperature | Compatible Electronics | Baikal ll / Baikal ll WIFI |
| Number of Rows | 46 | Number of Columns | 48 |
| Number of Nodes | 2,208 (46 x 48) | Thickness (μm) | Bezel area: ≤450 Sensing area: ≤ 300 |
