A Compact Yet
Powerful Solution
for Pressure Change Detection
MonoCell
MonoCell

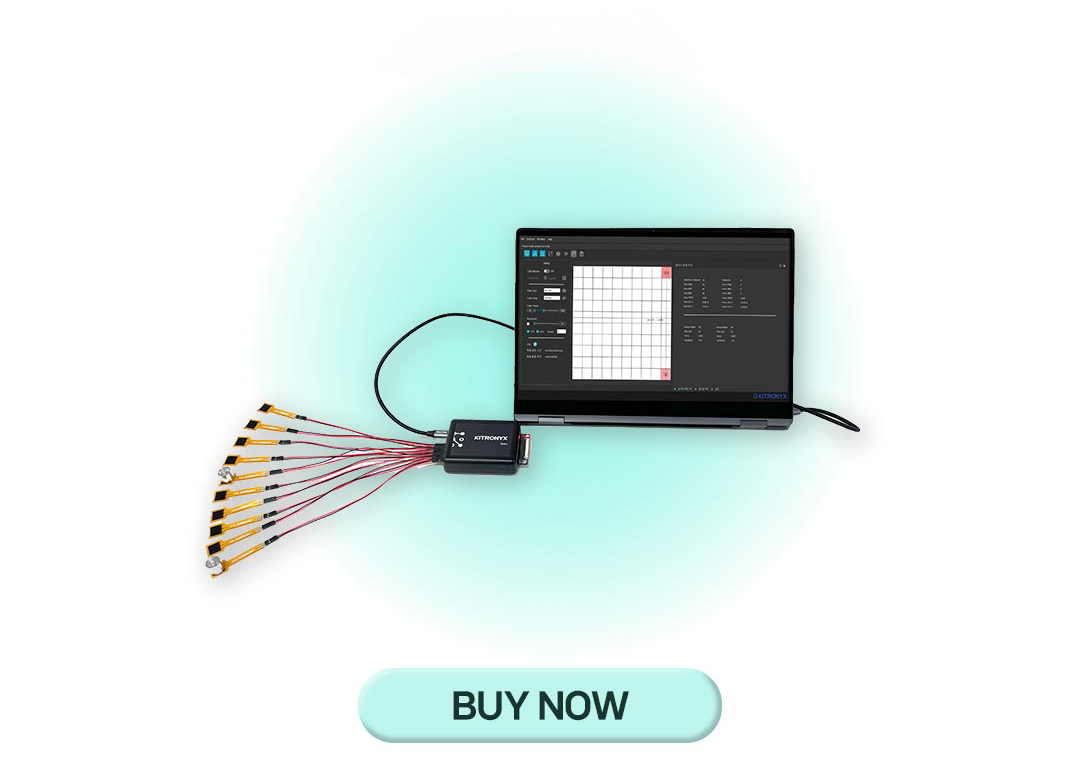

MonoCell is a compact sensing solution designed to precisely detect pressure changes in specific areas, leveraging the unique strengths of single-channel FSR sensors.
It is compatible with various development boards such as Arduino, and when used in combination with MonoLAB, Kitronyx’s proprietary software, it enables intuitive data analysis and efficient real-time monitoring.

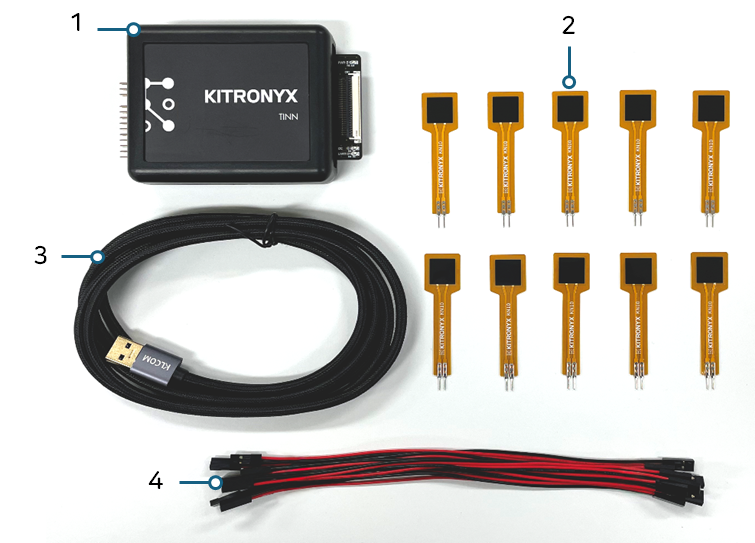

MonoCell_ Components
1. Tinn Controller 1EA |
2. KN10 10EA |
3. C-Type USB data cable 1EA |
4. Jumper cables (for connection) 10EA |
MonoCell_ Characteristics
Tinn_ Characteristics
Housing Material | ABS |
Size(L x W x H) (mm) | 70.54 x 108.65 x 27.04 |
Weight (g) | 78 |
Power Source | USB Powered |
Maximum Scanning Speed | 58Hz |
Maximum Device Connection | Up to 8 |
Digital Pressure Resolution | 8bit |
Communication to PC | USB |
Temperature | Room Temperature |
Sensor_ Characteristics

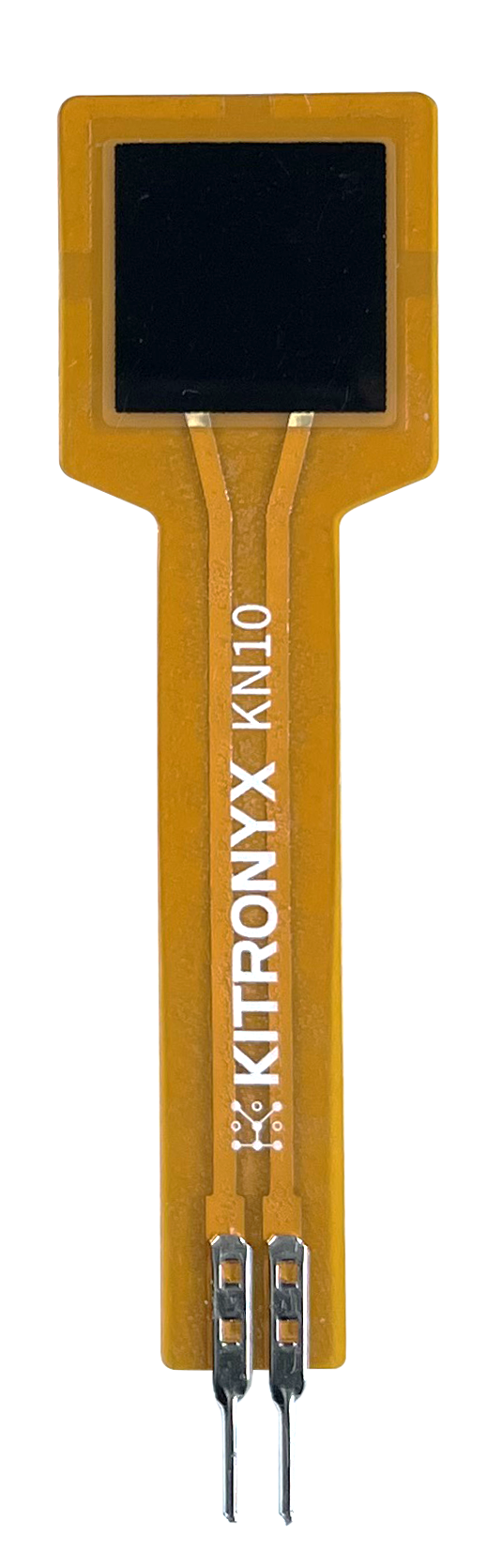

The solution includes 10 KN10 sensors, optimized for precise and reliable pressure detection.
| Sensor | KN10 | KN10-HT150 (Comming soon) |
| Number of Node | 1 | |
| Sensor Size (mm) | 17 x 17 | TBD |
| Sensing Area Size (mm) | 10 x 10 | 10 x 10 |
| Temperature (℃) | 23 ℃±5 ℃ | 23 ℃ ~ 150 ℃ |
| Thickness (μm) | < 270 | TBD |
| Pressure Range (kgf/cm²) | 0.5 ~ 40 | TBD |

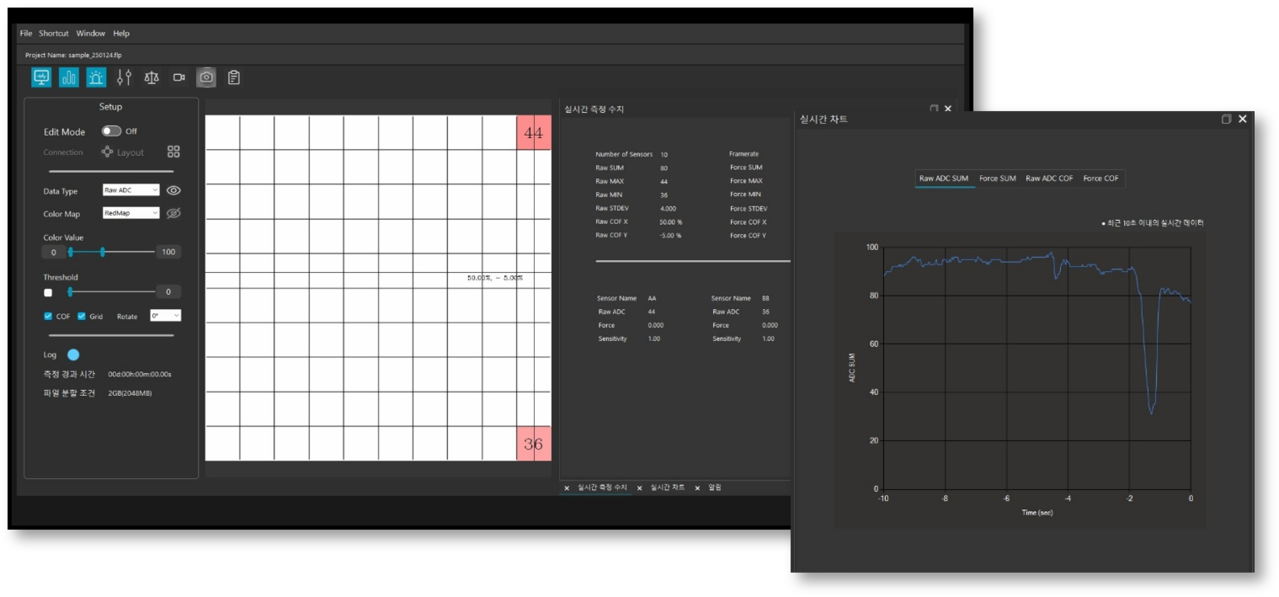

Software (Optional)
MonoLAB
Supported Operating System: Windows 10
