PressureScan ll

  • PressureScan II is a solution that uses the Baikal II wireless controller to measure pressure distribution.

  • It provides the capability to measure and monitor the pressure distribution at multiple points on the sensor simultaneously.

  • It is mainly used in industries that require pressure measurement during production processes, such as secondary batteries, semiconductors, and displays. If there is no suitable sensor among the existing products, custom sensors can be developed and manufactured according to user specifications.

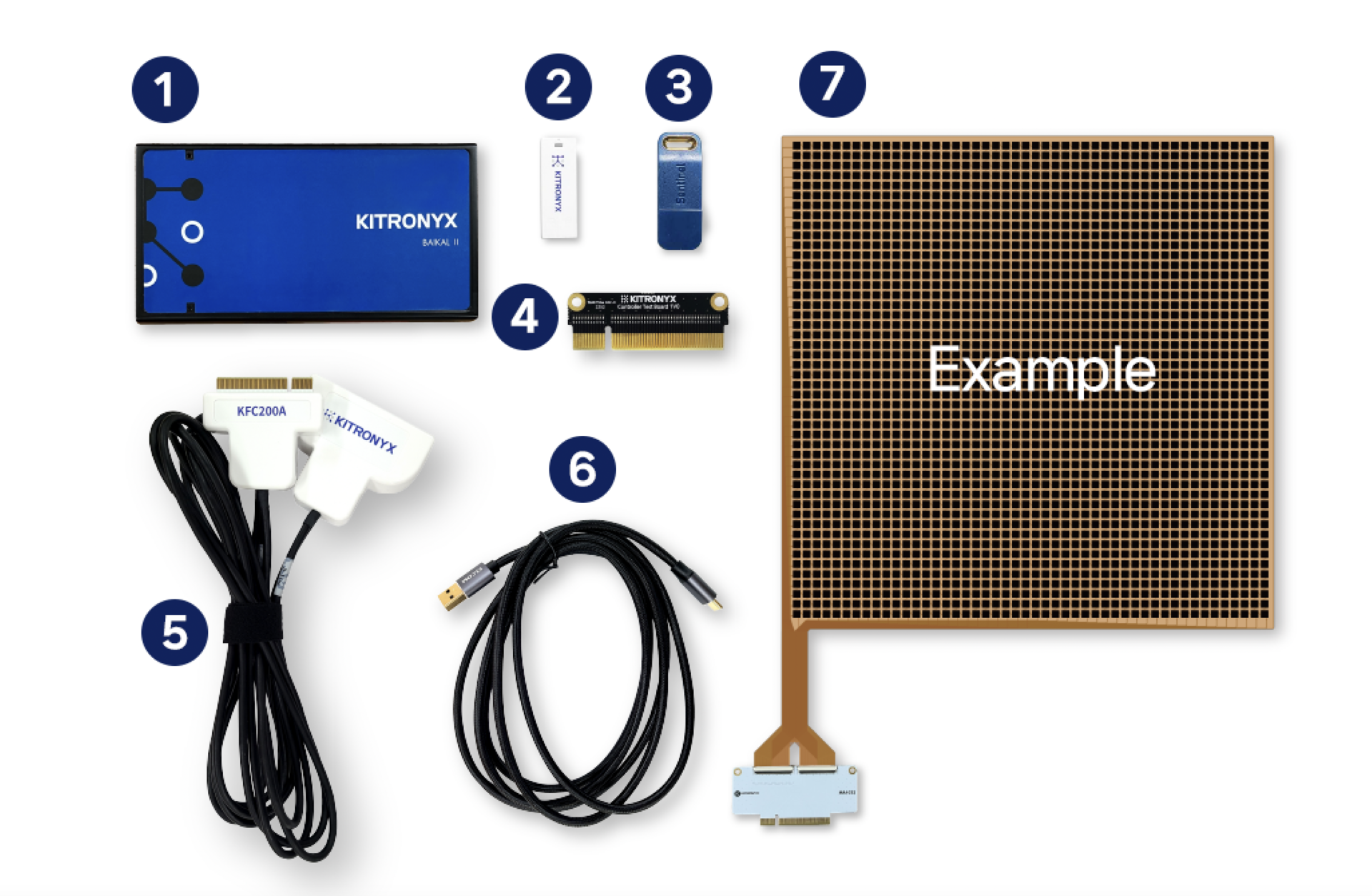

PressureScan ll_ Components


1. Baikal ll Controller 1EA
2. USB 1EA
3. ForceLAB2 License USB Dongle 1EA
4. Controller Test Board 1EA
5. MA1032 Interface Board 1EA
6. KFC Cable(Multi-Conductor Cable) 1EA
7. C-Type USB Cable 1EA
8. Customer-Selected Sensor 1EA

PressureScan ll_ Characteristics

             Baikal ll_ Characteristics

Housing Material
ABS
Size(L x W x H) (mm)
156.86 x 80.9 x 22.0
Weight (g)
183
Power Source
USB Powered, +5v / 0.8Amax
Maximum Scanning Speed
32Hz
Maximum Device Connection
Up to 8
Digital Pressure Resolution
16bit
Communication to PC
USB
Temperature
0 -70 ℃

             Sensor_ Optional

                         The sensor can be selected as desired by the customer.


Software_ForceLAB2

Supported Operating System: Windows 10

             ForceLAB2 VS Snowforce3 Comparison Chart


ForceLAB2VSSnowforce3
Contact UsPriceFree
8Multiple Device Measurement2
5Multiple Wireless Device MeasurementX
OReal-time Data RecordingO
O
Pressure Distribution Data SnapshotO
O
2D Visualization of Real-time Pressure Distribution MappingO
O
Center of ForceO
O
Data Export (API)O
O
Easy and Flexible VisualizationX
O
Time Series Data ChartX
O
Data ComparisonX
O
User Defined ColormapX
O
Single & Multi-Point Sensor CalibrationX
O
Support Various Communication InterfaceX
O
Center of Force & TrajectoryX
O
Log video recordingX
O
Real-time 3D visualization of pressure distribution
X
O
Total ForceX
O
Contact AreaX
O
Contact PressureX
O
Peak ForceX
O
Display Cropped Matrix VisualizationX


* The performance of the software may vary depending on the capabilities of the PC.
