PressureScan ll WIFI
PressureScan II WIFI is a solution that uses the Baikal II WIFI wireless controller (also supports wired connection) to measure pressure distribution.
It provides the capability to measure and monitor the pressure distribution at multiple points on the sensor simultaneously.
It is mainly used in industries that require pressure measurement during production processes, such as secondary batteries, semiconductors, and displays. If there is no suitable sensor among the existing products, custom sensors can be developed and manufactured according to user specifications.

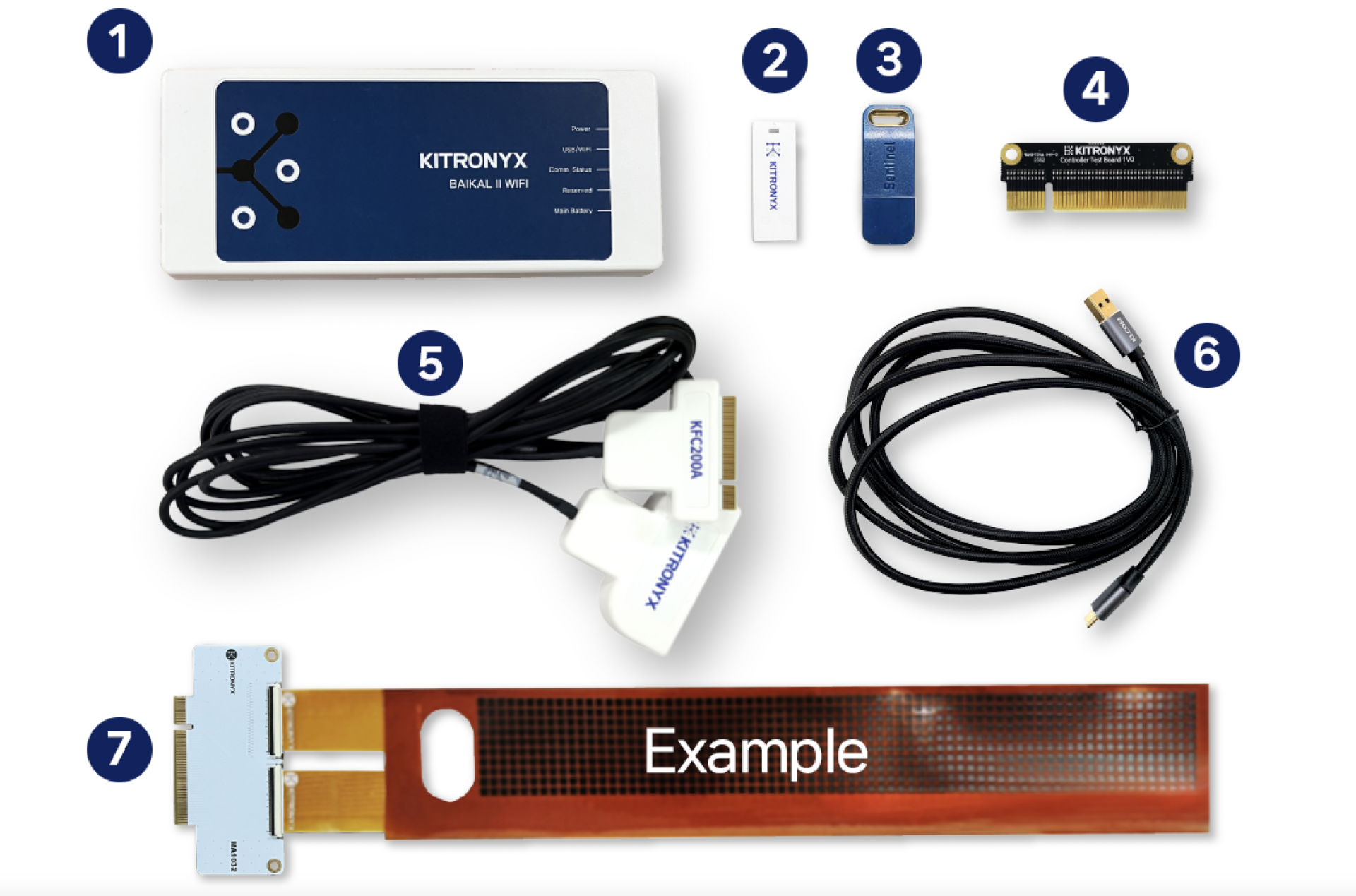

PressureScan ll WIFI_ Components

1. Baikal ll WIFI Controller 1EA |
2. USB 1EA |
3. ForceLAB2 License USB Dongle 1EA |
4. Controller Test Board 1EA |
5. MA1032 Interface Board 1EA |
6. KFC Cable(Multi-Conductor Cable) 1EA |
7. C-Type USB Cable 1EA |
8. Customer-Selected Sensor 1EA |
PressureScan ll WIFI_ Characteristics

Baikal ll WIFI_ Characteristics
Category | Item | Specification | Note |
Appearance Characteristics | Size(L x W x H) (mm) | 170 x 70 x 30 | Case Size |
Weight (g) | 250 | ||
Electrical Characteristics | Input Power | USB (+5v), 1.5A | Recommend: 5V, 2A |
Battery | Lithium Polymer, 3,000mAh | ||
Operating Time on Battery | After Charging, Up to 5 hours | Entire Pressurization (4.99kohm) | |
Communication Operation Characteristics | Comm. 1 | USB | Charging at the same time |
Comm. 2 | WiFi 1:1 Communication (PC:Device) | 2.4GHz, 802.11g/n | |
Comm. 3 | WiFi 1:N Communication (PC:Device) | Up to 5, 2.4GHz, 802.11g/n | |
Maximum Scanning Rate | Wired: 32Hz / Wireless: 21Hz | ||
Resolution | 16bit | ||
Etc. | Output Voltage | +5 Vdc | |
No. of Channel | 2,304(48 x 48) | ||
Connection Method | PCI Connector 98P | ||
Operating Temperature | 0 -50 ℃ |
Sensor_ Optional
The sensor can be selected as desired by the customer.


Software_ForceLAB2
Supported Operating System: Windows 10
ForceLAB2 VS Snowforce3 Comparison Chart
ForceLAB2 | VS | Snowforce3 |
Contact Us | Price | Free |
8 | Multiple Device Measurement | 2 |
5 | Multiple Wireless Device Measurement | X |
O | Real-time Data Recording | O |
O | Pressure Distribution Data Snapshot | O |
O | 2D Visualization of Real-time Pressure Distribution Mapping | O |
O | Center of Force | O |
O | Data Export (API) | O |
O | Easy and Flexible Visualization | X |
O | Time Series Data Chart | X |
O | Data Comparison | X |
O | User Defined Colormap | X |
O | Single & Multi-Point Sensor Calibration | X |
O | Support Various Communication Interface | X |
O | Center of Force & Trajectory | X |
O | Log video recording | X |
O | Real-time 3D visualization of pressure distribution | X |
O | Total Force | X |
O | Contact Area | X |
O | Contact Pressure | X |
O | Peak Force | X |
O | Display Cropped Matrix Visualization | X |
* The performance of the software may vary depending on the capabilities of the PC.
