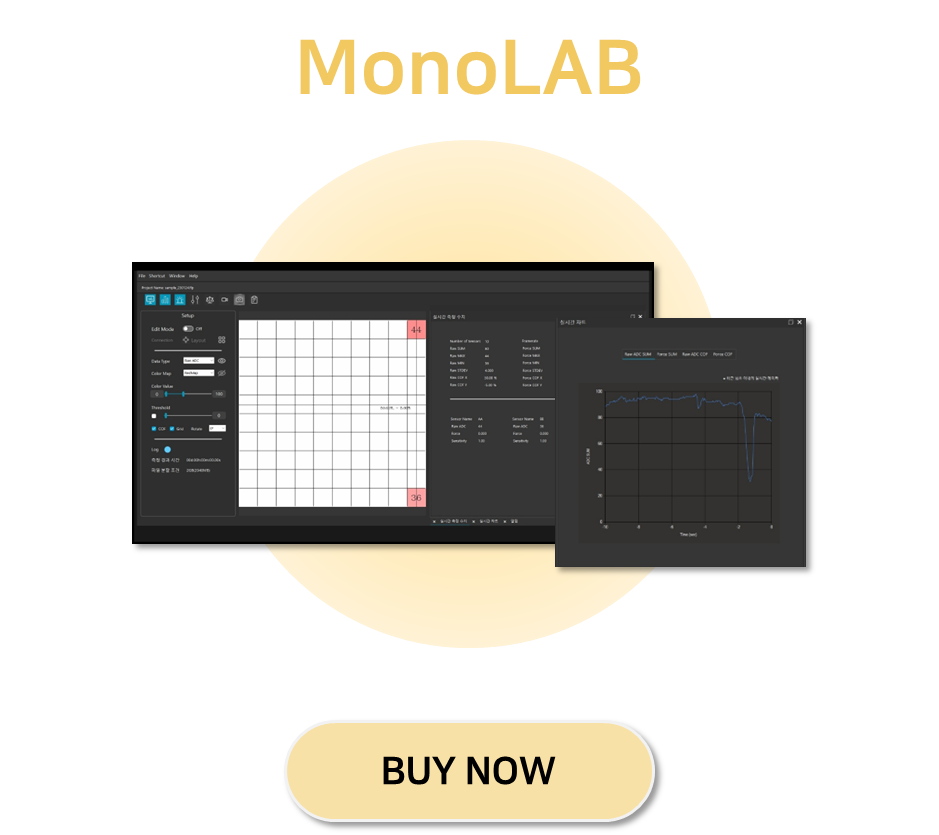

MonoLAB
MonoLAB is a proprietary software developed by Kitronyx, provided free of charge and designed for use with single-channel FSR sensors and the Tinn controller.
Minimum / Recommended System Requirements
Minimum Requirements Recommended Requirements
OS Windows 10 Windows 10 (64bit) CPU Intel Pentium Dual Core CPU Intel i5-9600K CPU RAM 8GB 16GB HDD 10GB 10GB VGA Intel UHD Graphics 630 NVIDIA GTX 750
MonoLAB _ Key Features
- An easy-to-use software for measuring pressure distribution using single-channel FSR sensors
Measure and analyze data from up to 10 sensors simultaneously in real time.

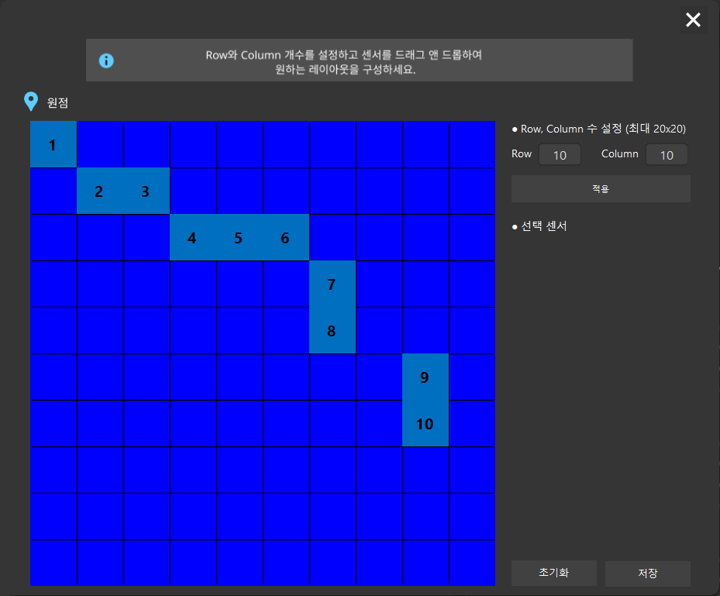

Flexible Sensor Layout
Arrange up to 10 sensors freely within a 20×20 grid layout to match your specific sensing configuration.

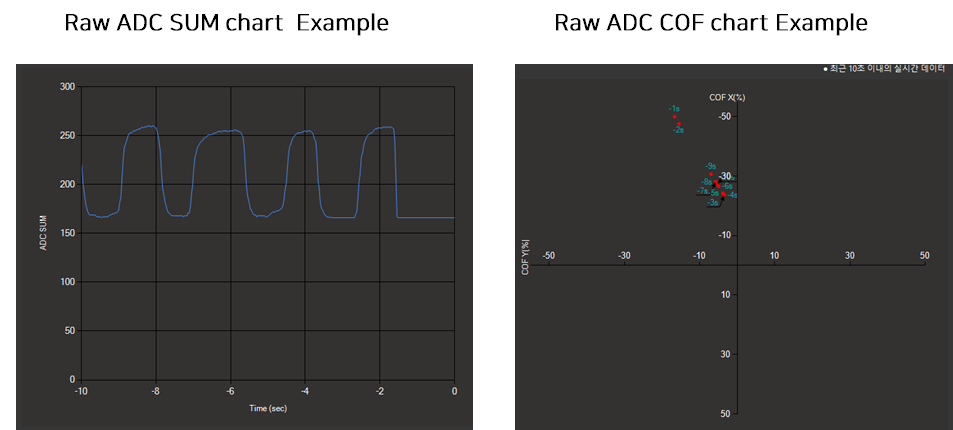

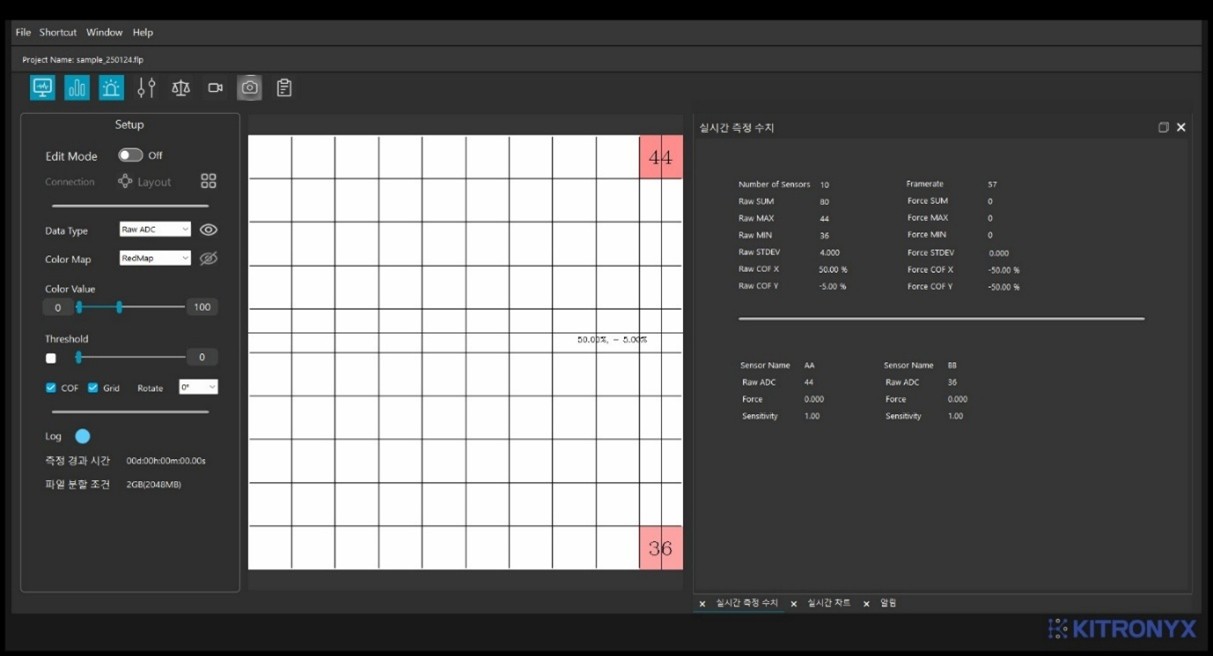

Real-Time Monitoring with Multiple Charts
View time-series graphs showing the total force value (sum of all sensors) and the Center of Force (COF) over the most recent 10 seconds.
Each window can be docked or floated for flexible screen layout, enabling you to monitor numerical data and charts side by side with ease.※ COF is calculated based on the user-defined sensor layout.
Force values are only available when a separate calibration file is provided.
Factory calibration is not included in the default solution.

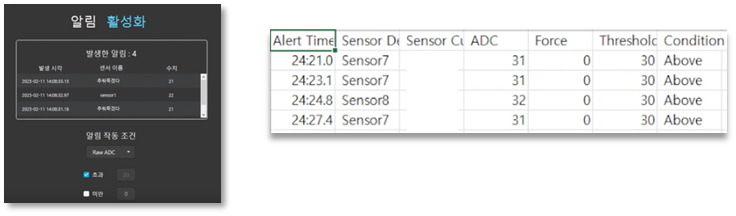

Alert Function
Receive real-time alerts when sensor readings exceed predefined thresholds.
All alert events are automatically logged, enabling issue tracking and data-driven management.

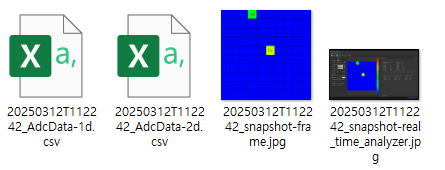

Snapshot
Capture real-time sensor data as CSV files or image snapshots, making it easier to analyze and utilize the data in multiple formats.

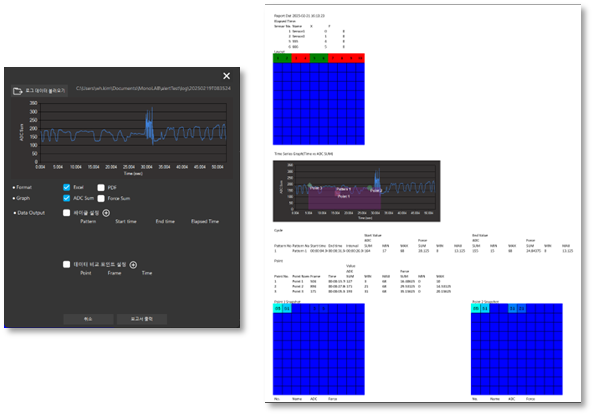

Report
Use the report feature to easily create and export pressure analysis results based on logged data. Reports are available in Excel and PDF formats.
Data Logging
Log sensor data continuously throughout the measurement period with stability and accuracy.
The logged data can later be used for post-analysis.※ Please note: Log replay functionality is not supported.
